125E5R157M16-ISBN10-F
125E5R157M16-ISBN10-F
125E5R157M16-ISBN10-F

125E5R157M16-ISBN10-F

UGC DOR7455323
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$420.00 CAD - $420.00 CAD
$420.00 CAD
$420.00 CAD - $420.00 CAD
$420.00 CAD

Vendu en lots de : 1

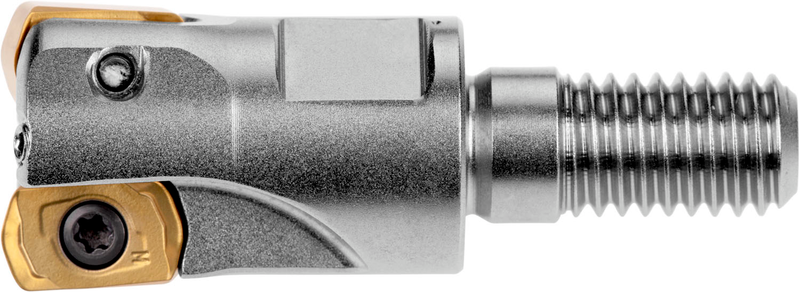

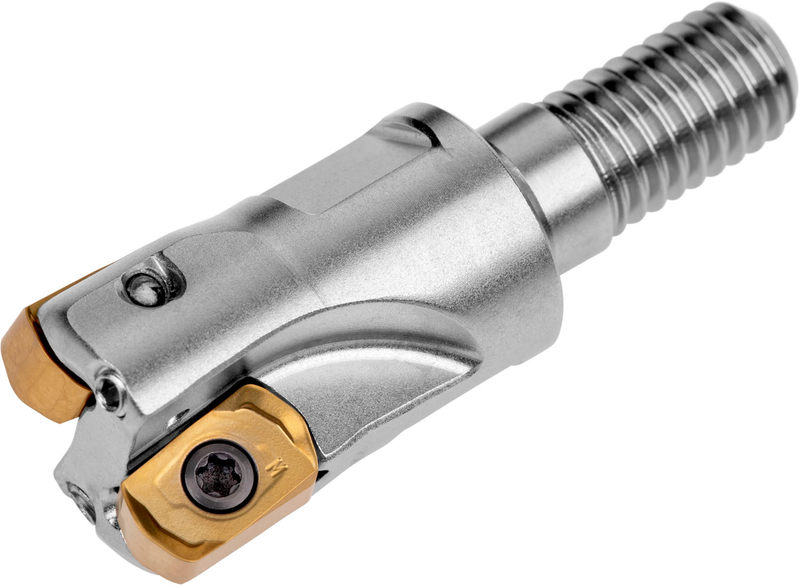

Fraise à grande avance avec géométrie double négative qui utilise 5 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 1,25'' avec angle d'approche de 20° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 1,575'', arrosage par l'intérieur et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage d'épaulements profonds, le fraisage de rainures peu profondes, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en bout et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,039''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E5R157M16-ISBN10-F
Product Number7455323
Product FamilyISBN10

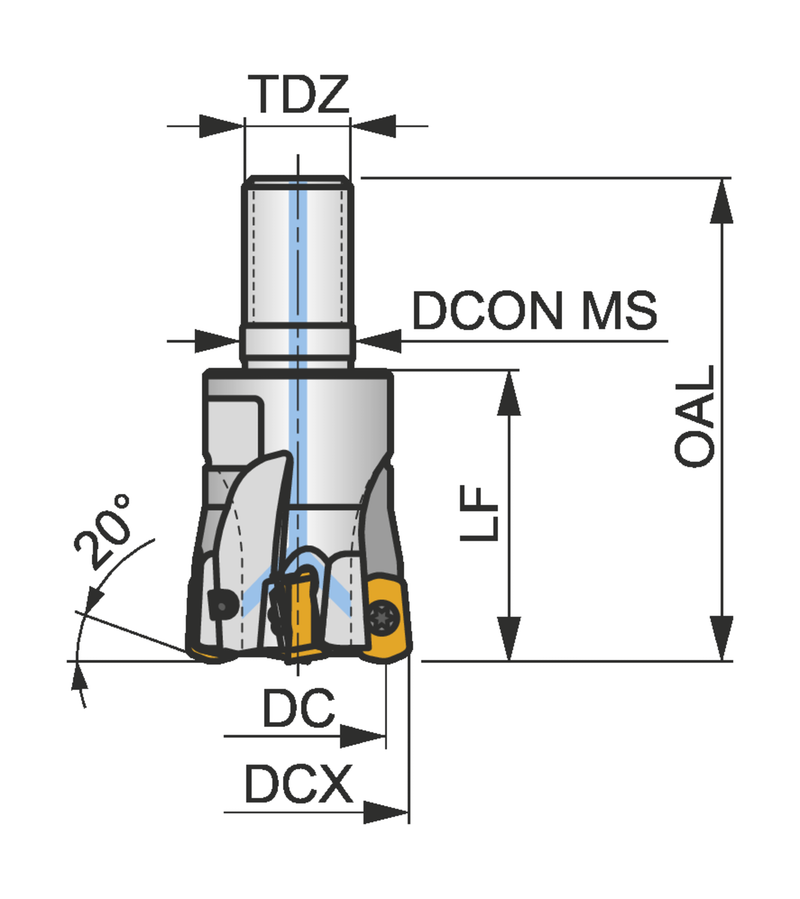

Dimensions
Cutting Diameter — in (DC)0.99"
Cutting Diameter — mm (DC)25.1 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455323
EAN3603603388369
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
125E5R157M16-ISBN10-F — 3D Model STP Download
125E5R157M16-ISBN10-F — 2D Model DXF Download
125E5R157M16-ISBN10-F — Line Drawing PDF Download
