125E6R157M16-ISBN10-C
125E6R157M16-ISBN10-C
125E6R157M16-ISBN10-C

125E6R157M16-ISBN10-C

UGC DOR7455324
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$436.00 CAD - $436.00 CAD
$436.00 CAD
$436.00 CAD - $436.00 CAD
$436.00 CAD

Vendu en lots de : 1

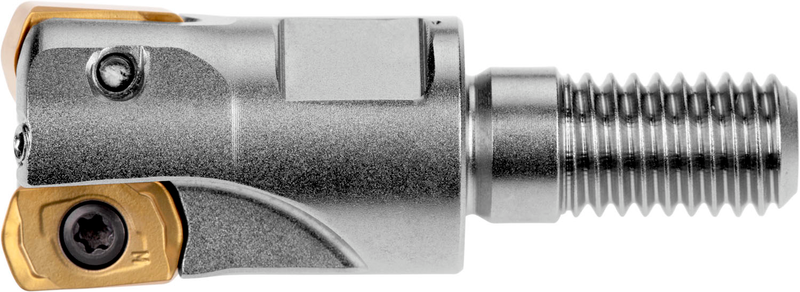

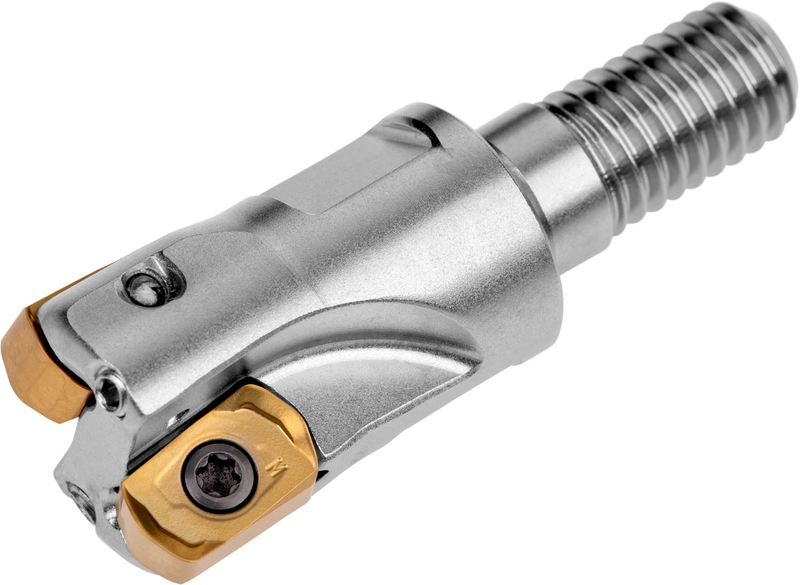

Fraise à avance rapide avec géométrie double négative qui utilise 6 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe de 1,25'' avec un angle d'attaque de 20° et une queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 1,575'', arrosage par l'intérieur et pas différentiel pour le surfaçage, le fraisage de forme, le fraisage d'épaulement profond, le fraisage de rainure peu profonde, l'interpolation hélicoïdale, le fraisage en hélice, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,039''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E6R157M16-ISBN10-C
Product Number7455324
Product FamilyISBN10
Dimensions
Cutting Diameter — in (DC)0.99"
Cutting Diameter — mm (DC)25.1 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455324
EAN3603603388376
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
125E6R157M16-ISBN10-C — 3D Model STP Download
125E6R157M16-ISBN10-C — 2D Model DXF Download
125E6R157M16-ISBN10-C — Line Drawing PDF Download
