100E2R134C075-ISRC10-C
100E2R134C075-ISRC10-C
100E2R134C075-ISRC10-C

100E2R134C075-ISRC10-C

UGC DOR7455328
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$414.00 CAD - $414.00 CAD
$414.00 CAD
$414.00 CAD - $414.00 CAD
$414.00 CAD

Vendu en lots de : 1

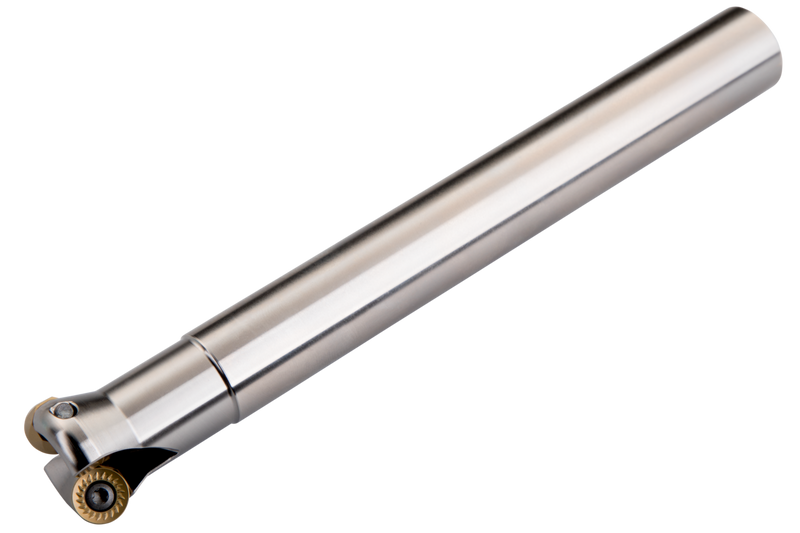

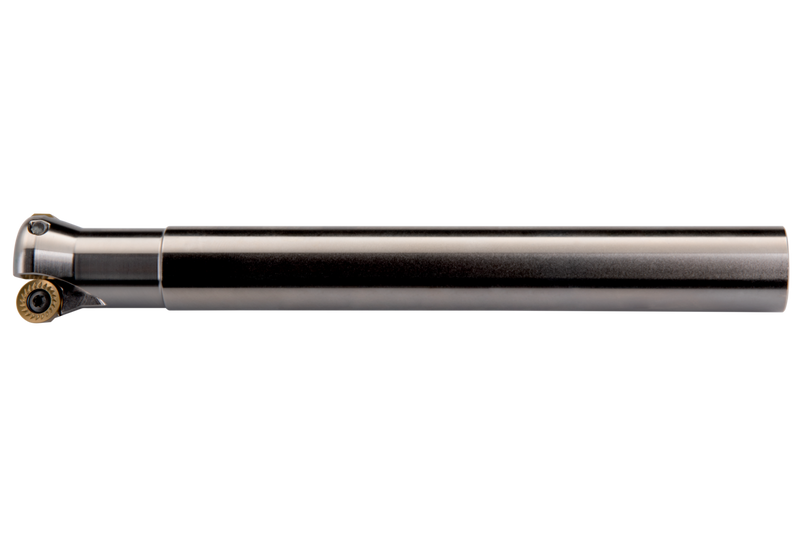

Fraise à surfacer à copier avec géométrie double négative qui utilise 2 plaquettes simple face RCMT 10T3MO.., diamètre de coupe 1.000'' avec queue cylindrique de .750'' selon DIN 1835A, longueur totale de 6.700'', arrosage central pour le surfaçage, le fraisage à copier, l'usinage en ramping, le fraisage hélicoïdal et le fraisage en plongée avec une profondeur de coupe maximale de .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100E2R134C075-ISRC10-C
Product Number7455328
Product FamilyISRC10

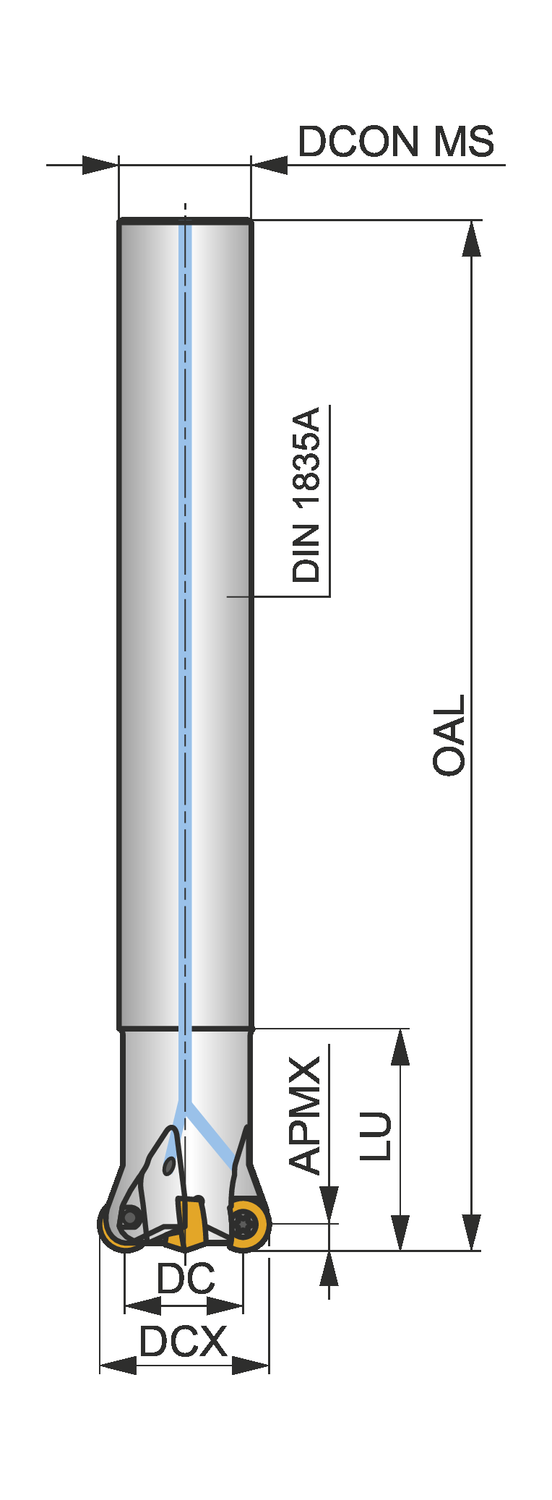

Dimensions
Cutting Diameter — in (DC)0.606"
Cutting Diameter — mm (DC)15.4 mm
Overall Length — in (OAL)6.7"
Overall Length — mm (OAL)170.0 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignRSC10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455328
EAN3603603388383
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
100E2R134C075-ISRC10-C — 3D Model STP Download
100E2R134C075-ISRC10-C — 2D Model DXF Download
100E2R134C075-ISRC10-C — Line Drawing PDF Download
