100E3R134C075-ISRC10-C
100E3R134C075-ISRC10-C
100E3R134C075-ISRC10-C

100E3R134C075-ISRC10-C

UGC DOR7455329
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$421.00 CAD - $421.00 CAD
$421.00 CAD
$421.00 CAD - $421.00 CAD
$421.00 CAD

Vendu en lots de : 1

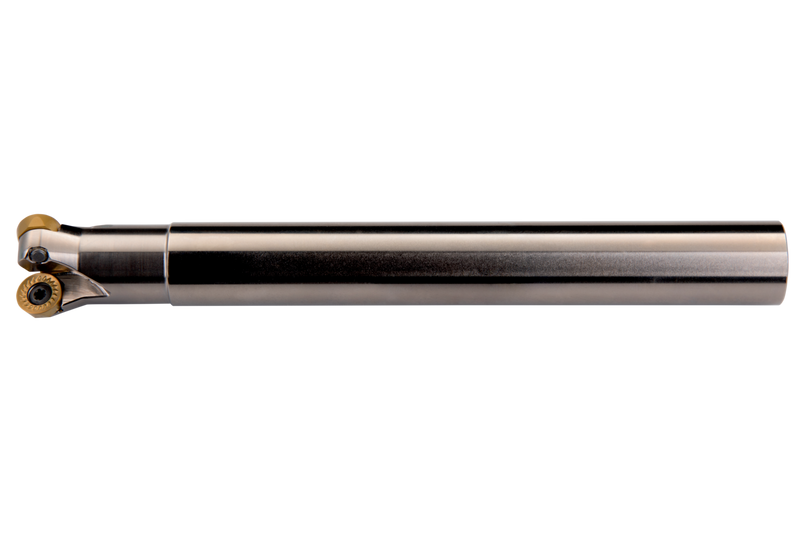

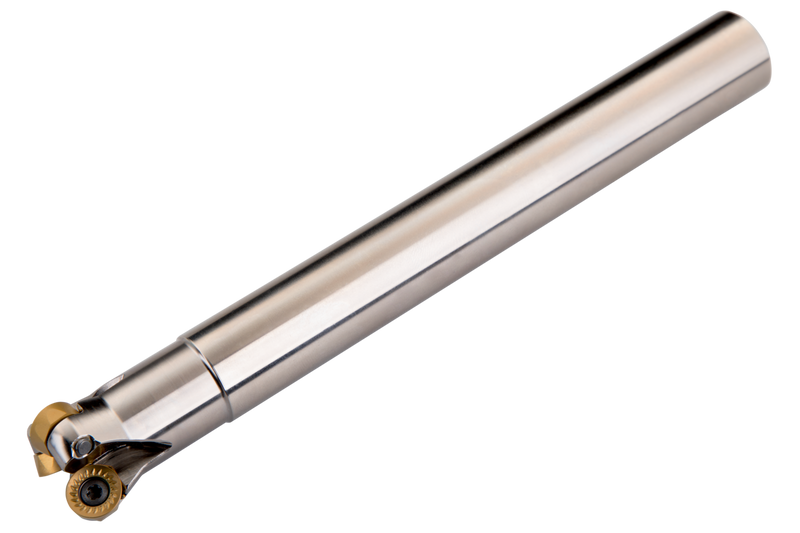

Fraise à surfacer à copier avec géométrie double négative qui utilise 3 plaquettes RCMT 10T3MO... simple face, diamètre de coupe 1.000'' avec queue parallèle .750'' selon DIN 1835A, longueur totale 6.700'', arrosage par l'intérieur pour le surfaçage, le fraisage à copier, le ramping, le fraisage hélicoïdal et le fraisage en plongée avec une profondeur de coupe maximale de .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100E3R134C075-ISRC10-C
Product Number7455329
Product FamilyISRC10

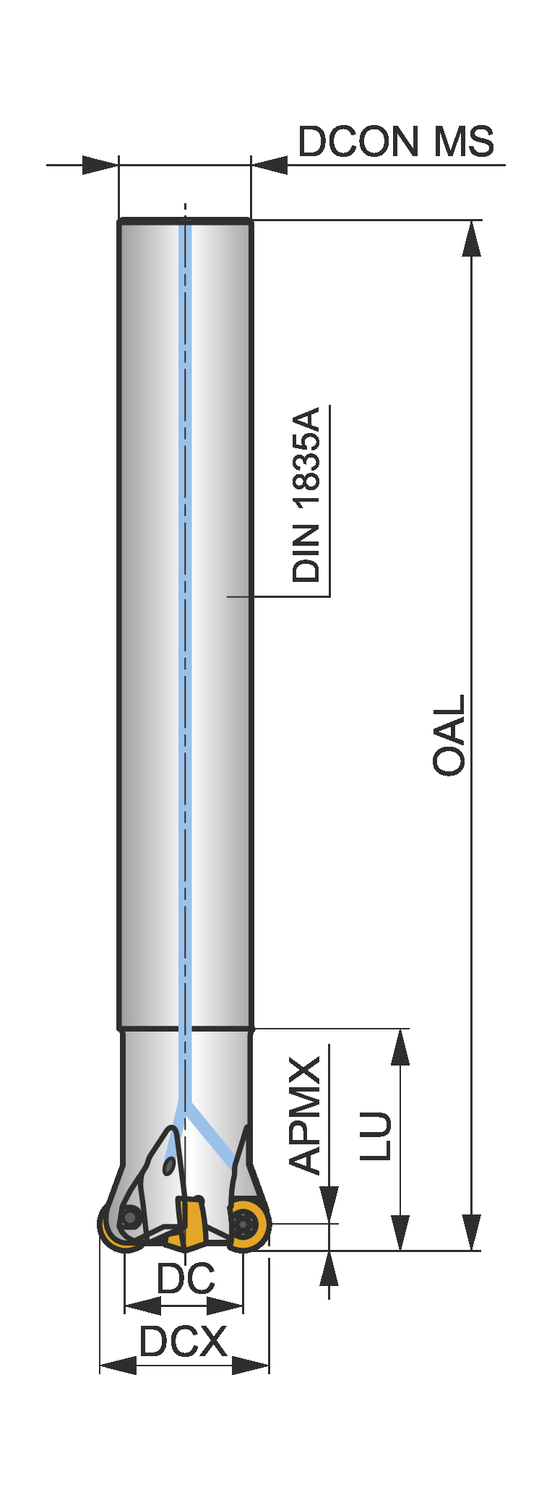

Dimensions
Cutting Diameter — in (DC)0.606"
Cutting Diameter — mm (DC)15.4 mm
Overall Length — in (OAL)6.7"
Overall Length — mm (OAL)170.0 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignRSC10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455329
EAN3603603388390
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
100E3R134C075-ISRC10-C — 3D Model STP Download
100E3R134C075-ISRC10-C — 2D Model DXF Download
100E3R134C075-ISRC10-C — Line Drawing PDF Download
