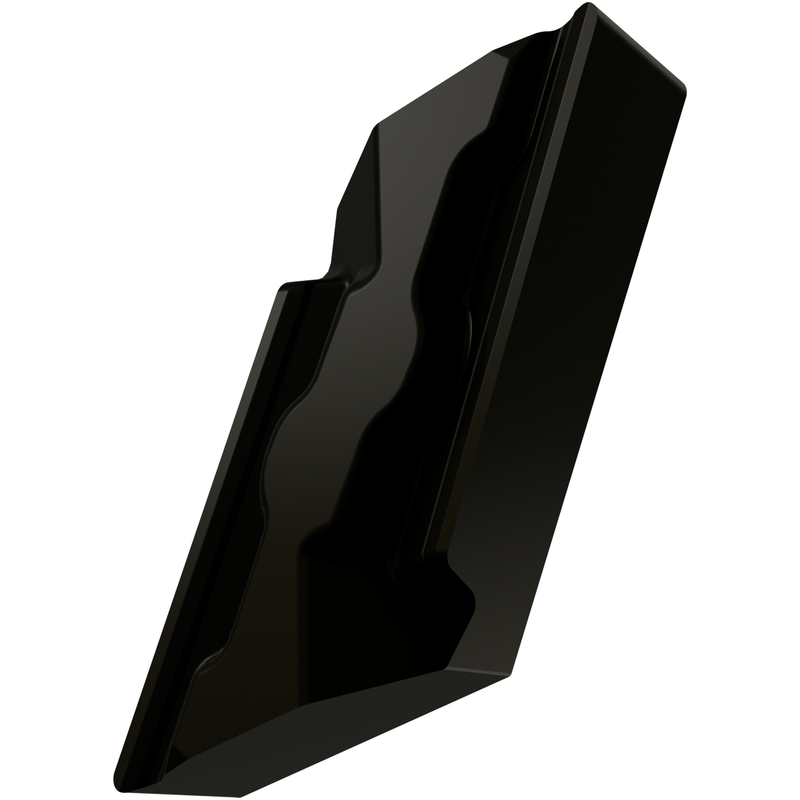

KNUX 160405L-22:T7335
KNUX 160405L-22:T7335

KNUX 160405L-22:T7335

UGC DOR7455429
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

Plaquette négative de conception spéciale, parallélogramme à 55° avec une arête principale de 16 mm, épaisseur de 4,76 mm, rayon de pointe de 0,5 mm et précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 22, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage moyen à lourd avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405L-22:T7335
GradeT7335
Chipbreaker (CBMD)22
Product Number7455429
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme 55° angle inclus
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7455429
EAN3603603388512
File Type Download
KNUX 160405L-22:T7335 — Line Drawing PDF Download
