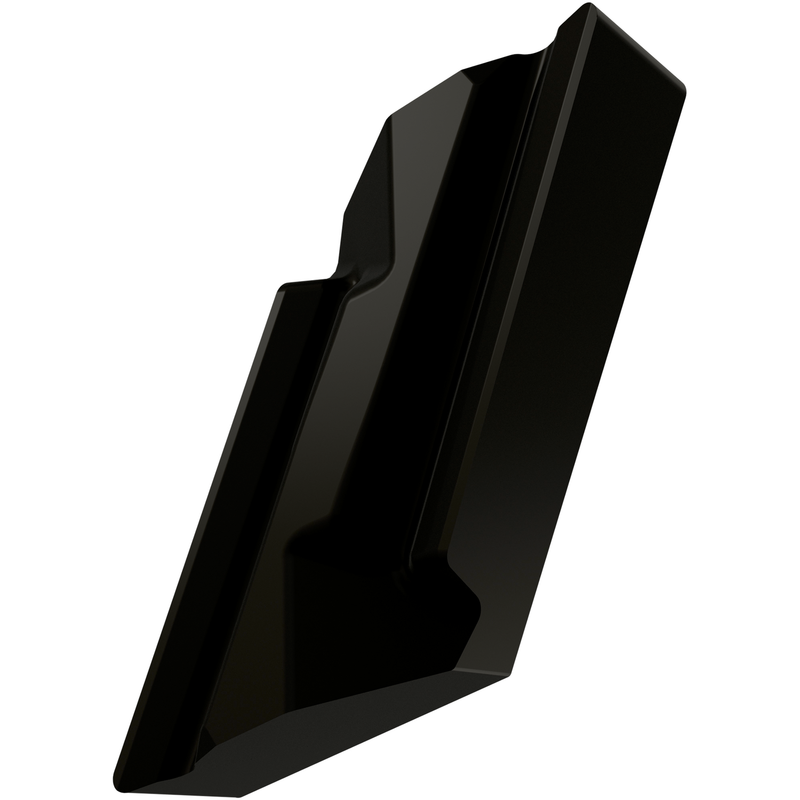

KNUX 160405L-32:T9325
KNUX 160405L-32:T9325

KNUX 160405L-32:T9325

UGC DOR7455482
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

Plaquette de tournage négative de conception spéciale, parallélogramme à 55° avec une arête de coupe principale de 16 mm, 4,76 mm d'épaisseur, rayon de bec de 0,5 mm et précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 32, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage moyen à lourd des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405L-32:T9325
GradeT9325
Chipbreaker (CBMD)32
Product Number7455482
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle inclus de 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7455482
EAN3603603388543
File Type Download
KNUX 160405L-32:T9325 — Line Drawing PDF Download
