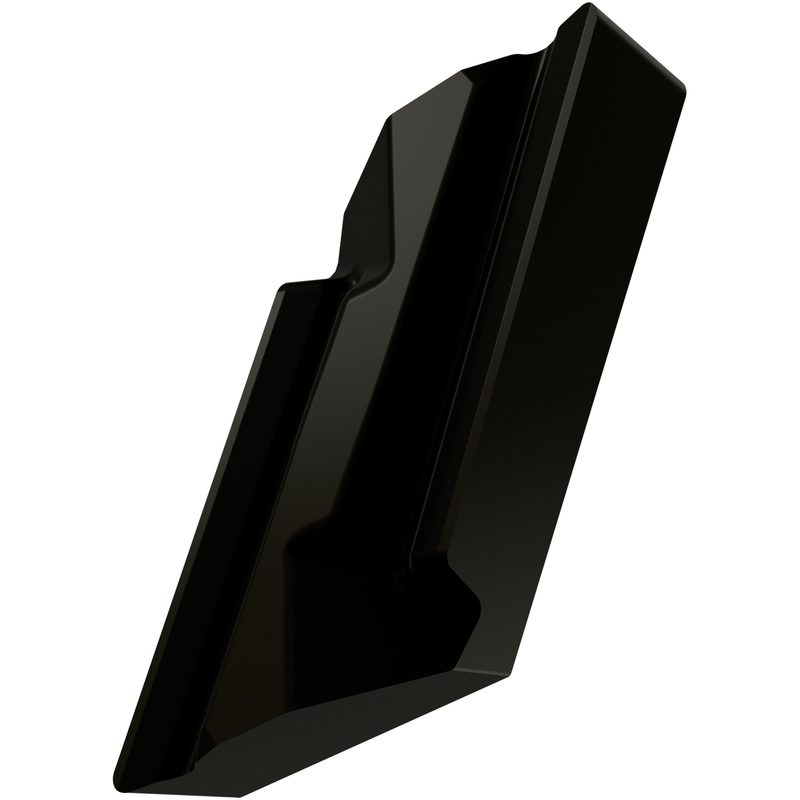

KNUX 160405L-32:T7325
KNUX 160405L-32:T7325

KNUX 160405L-32:T7325

UGC DOR7455485
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

Plaquette de tournage négative de conception spéciale, parallélogramme à 55° avec une arête principale de 16 mm de long, 4,76 mm d'épaisseur, un rayon de bec de 0,5 mm et une précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 32, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage moyen à lourd avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405L-32:T7325
GradeT7325
Chipbreaker (CBMD)32
Product Number7455485
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle interne de 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7455485
EAN3603603388574
File Type Download
KNUX 160405L-32:T7325 — Line Drawing PDF Download
