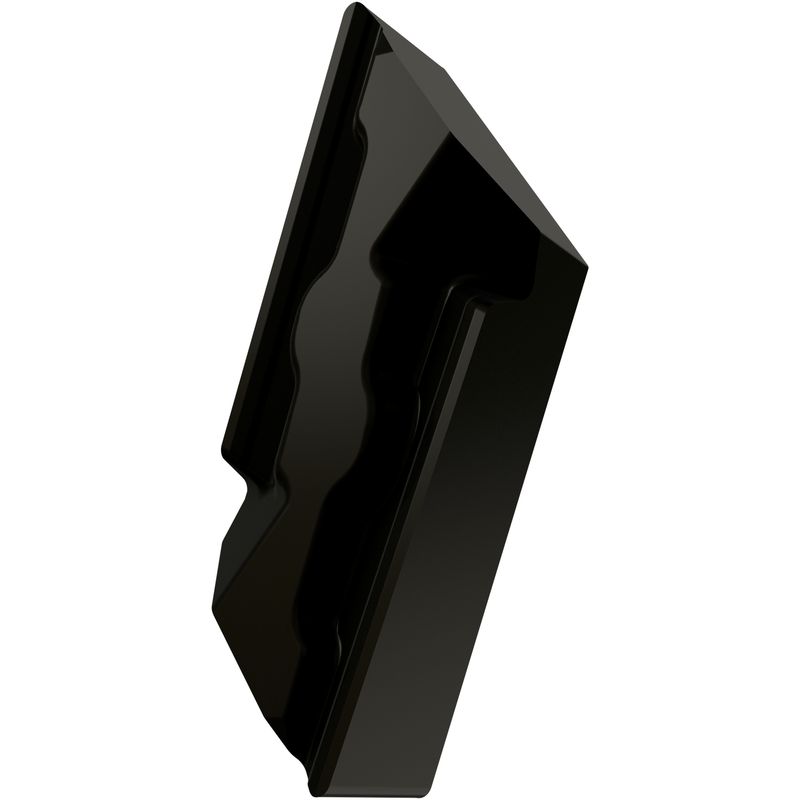

KNUX 160405R-22:T9335
KNUX 160405R-22:T9335

KNUX 160405R-22:T9335

UGC DOR7455488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

Plaquette négative de conception spéciale pour le tournage, parallélogramme de 55° avec une arête de coupe principale de 16mm, 4,76mm d'épaisseur, un rayon de bec de 0,5mm et une précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 22, en nuance T9335, un carbure WC-Co à gradient de fonctions revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage moyen à lourd des aciers avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405R-22:T9335
GradeT9335
Chipbreaker (CBMD)22
Product Number7455488
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme 55° angle inclus
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7455488
EAN3603603388604
File Type Download
KNUX 160405R-22:T9335 — Line Drawing PDF Download
