KNUX 160405R-22:T7325
KNUX 160405R-22:T7325

KNUX 160405R-22:T7325

UGC DOR7455490
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 10

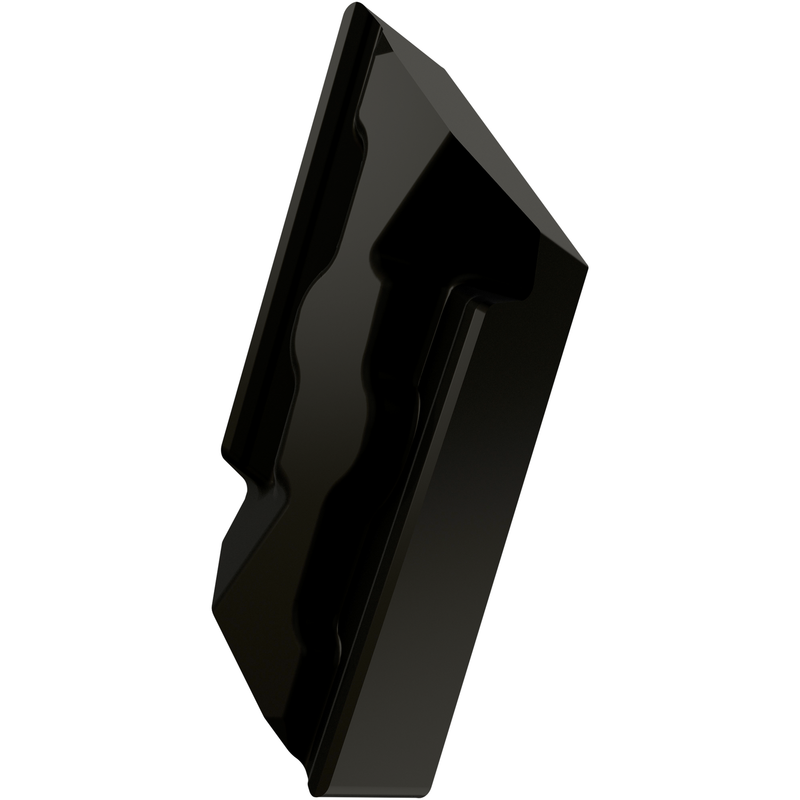

Plaquette négative de conception spéciale, parallélogramme 55° avec une arête principale de 16mm, 4,76mm d'épaisseur, un rayon de bec de 0,5mm et une précision de positionnement conforme à la classe de tolérance ISO-U, brise-copeaux 22, en nuance T7325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD, pour l'usinage moyen à lourd avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405R-22:T7325
GradeT7325
Chipbreaker (CBMD)22
Product Number7455490
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle inclus de 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7455490
EAN3603603388628
File Type Download
KNUX 160405R-22:T7325 — Line Drawing PDF Download
