RDHX 1604MOT:M9325
RDHX 1604MOT:M9325

RDHX 1604MOT:M9325

UGC DOR7455502
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.94 CAD - $24.94 CAD
$24.94 CAD
$24.94 CAD - $24.94 CAD
$24.94 CAD

Vendu en lots de : 10

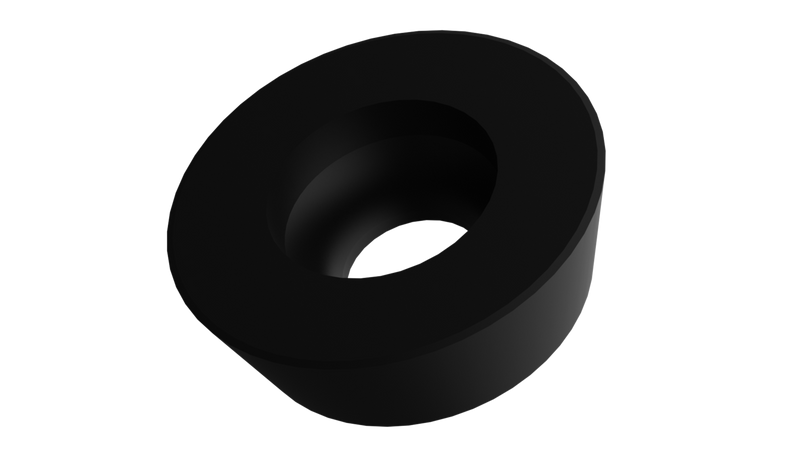

Plaquette de fraisage simple face RDHX 1604, ronde pour une profondeur de coupe maximale de 4,00 mm, avec rayon d'angle ", une précision de positionnement selon la classe de tolérance ISO-H avec des arêtes de coupe à facettes, carbure WC-Co revêtu MT-CVD M9325 pour l'usinage avec des fraises à copier SRD16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 1604MOT:M9325
GradeM9325
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number7455502
Product FamilyRDHX 16
Insert Geometry
Insert DesignRDHX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7455502
EAN3603603388741
File Type Download

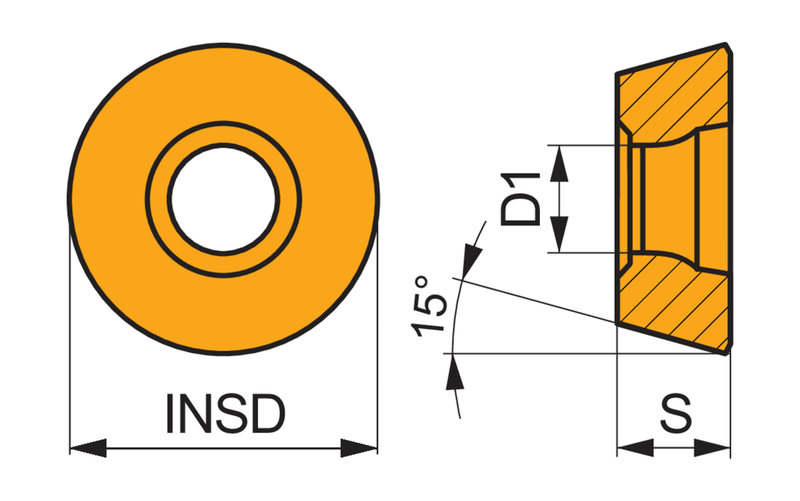

RDHX 1604MOT:M9325 — Line Drawing PDF Download
