250A06R-ISMORC10-C
250A06R-ISMORC10-C
250A06R-ISMORC10-C

250A06R-ISMORC10-C

UGC DOR7455531
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$627.00 CAD - $627.00 CAD
$627.00 CAD
$627.00 CAD - $627.00 CAD
$627.00 CAD

Vendu en lots de : 1

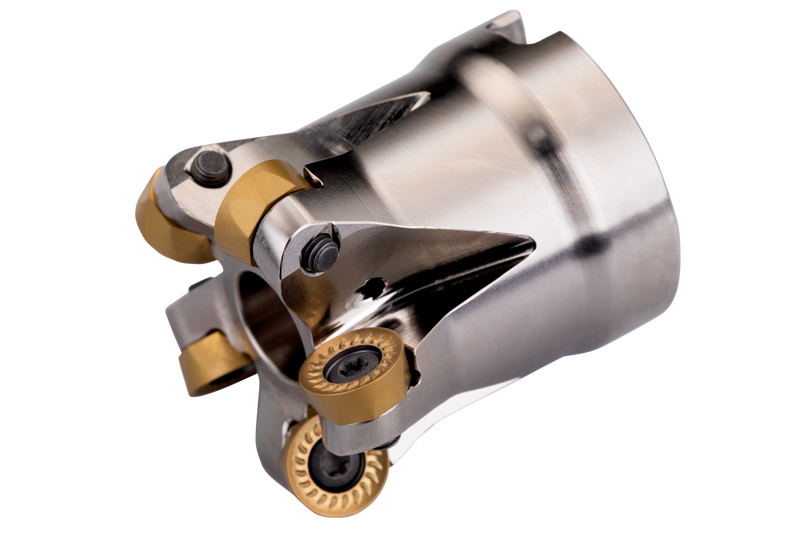

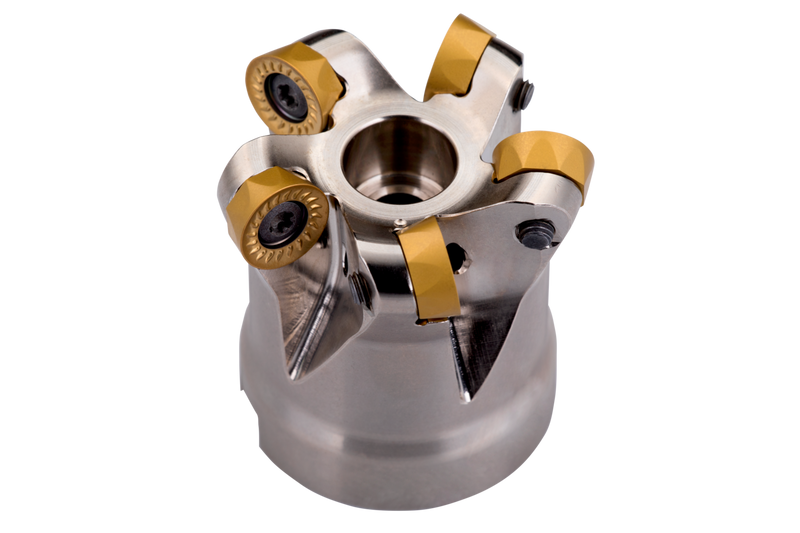

Fraise à copier avec double géométrie négative utilisant 6 plaquettes RCMT 10T3MO.. simple face, diamètre de coupe 2,500'' avec alésage de raccordement de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage central pour le surfaçage, le fraisage en copiage, l'usinage en rampe, le fraisage hélicoïdal et le fraisage en plongée avec une profondeur de coupe maximale de 0,197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-ISMORC10-C
Product Number7455531
Product FamilyISRC10

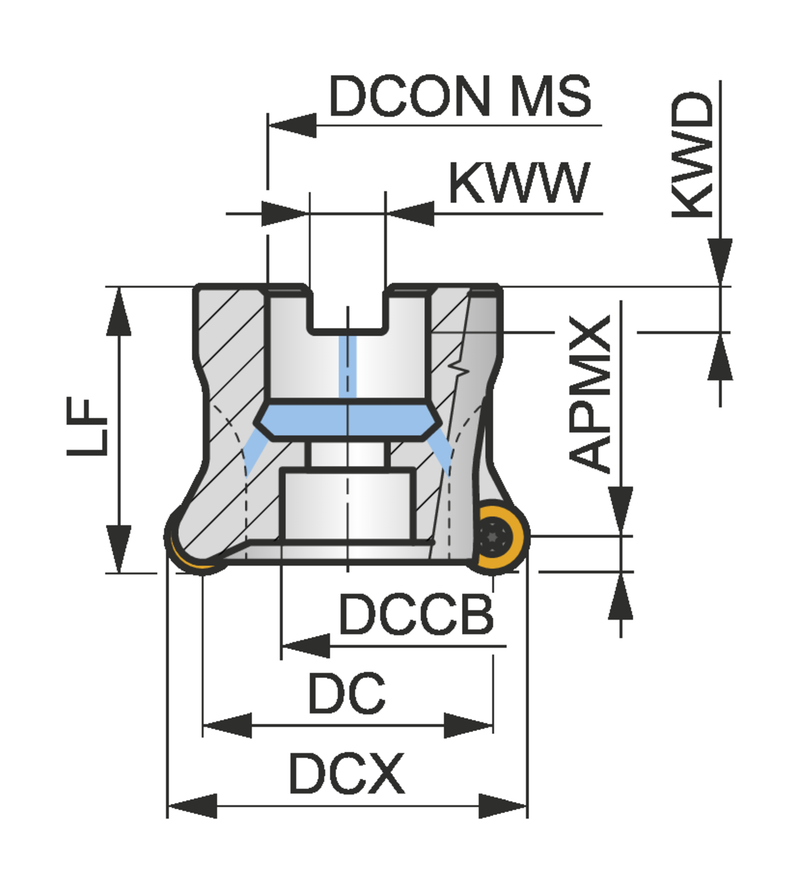

Dimensions
Cutting Diameter — in (DC)2.106"
Cutting Diameter — mm (DC)53.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignRSC10
ShankFraise à surfacer-dressser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455531
EAN3603603388796
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
250A06R-ISMORC10-C — 3D Model STP Download
250A06R-ISMORC10-C — 2D Model DXF Download
250A06R-ISMORC10-C — Line Drawing PDF Download
