20E4R030M10-SBN10-C
20E4R030M10-SBN10-C
20E4R030M10-SBN10-C

20E4R030M10-SBN10-C

UGC DOR7459341
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$342.00 CAD - $342.00 CAD
$342.00 CAD
$342.00 CAD - $342.00 CAD
$342.00 CAD

Vendu en lots de : 1

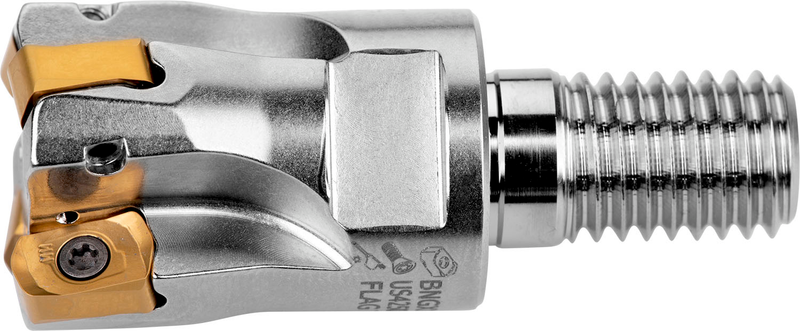

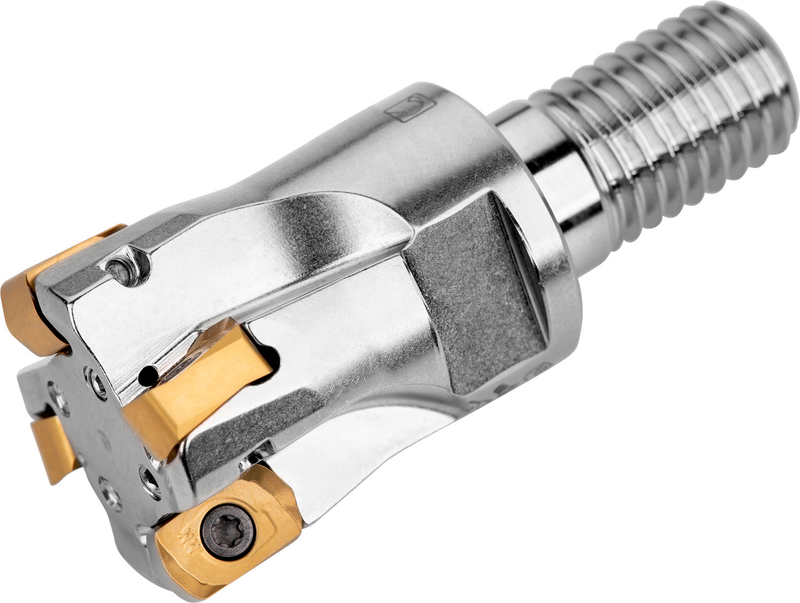

Fraise à avance élevée avec une géométrie positive/négative qui utilise 4 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 20 mm avec un angle d'attaque de 20° et une queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement 30 mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulement peu profond, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E4R030M10-SBN10-C
Product Number7459341
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.528"
Cutting Diameter — mm (DC)13.4 mm
Overall Length — in (OAL)1.929"
Overall Length — mm (OAL)49.0 mm
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7459341
EAN3603603390065
File Type Download
20E4R030M10-SBN10-C — 3D Model STP Download
20E4R030M10-SBN10-C — 2D Model DXF Download
20E4R030M10-SBN10-C — Line Drawing PDF Download
