40A05R-SMOBN10-C
40A05R-SMOBN10-C
40A05R-SMOBN10-C

40A05R-SMOBN10-C

UGC DOR7464824
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$462.00 CAD - $462.00 CAD
$462.00 CAD
$462.00 CAD - $462.00 CAD
$462.00 CAD

Vendu en lots de : 1

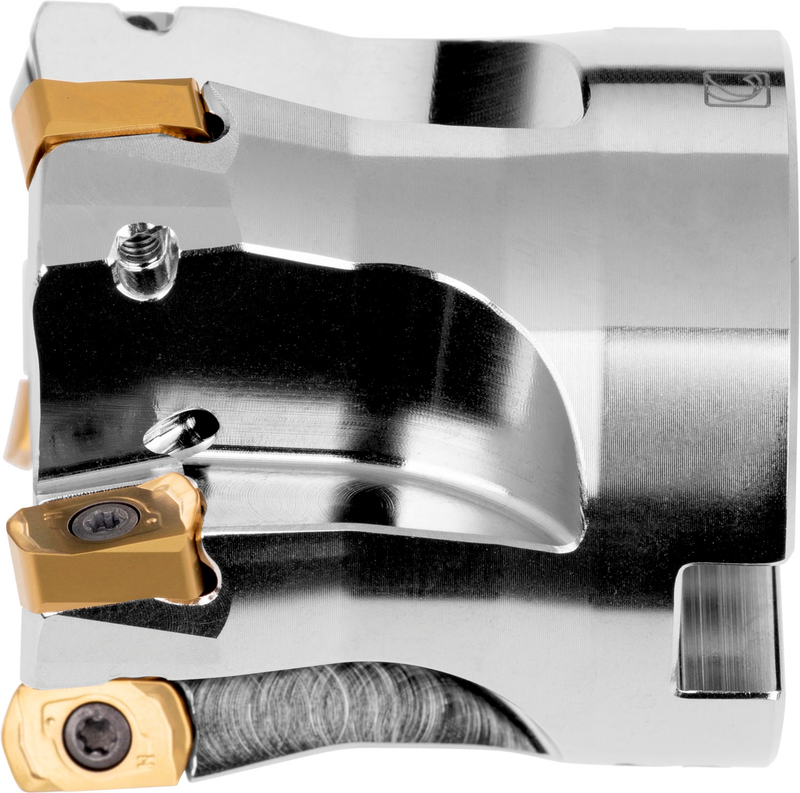

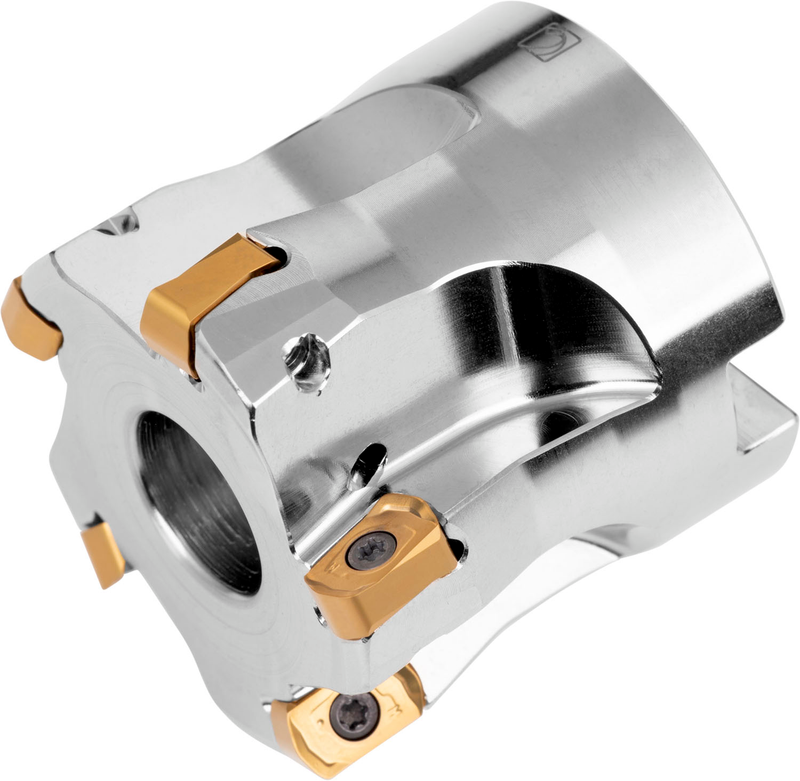

Fraise à avance rapide avec géométrie positive/négative utilisant 5 plaquettes BNGX 10T3.. ou ANHX 10T3.., diamètre de coupe 40mm avec un angle d'attaque de 20° et un alésage de connexion de 16mm selon DIN 8030-A, longueur en porte-à-faux de 40mm, arrosage central et pas différentiel pour le surfaçage, la copiage, le fraisage d'épaulements peu profonds, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A05R-SMOBN10-C
Product Number7464824
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

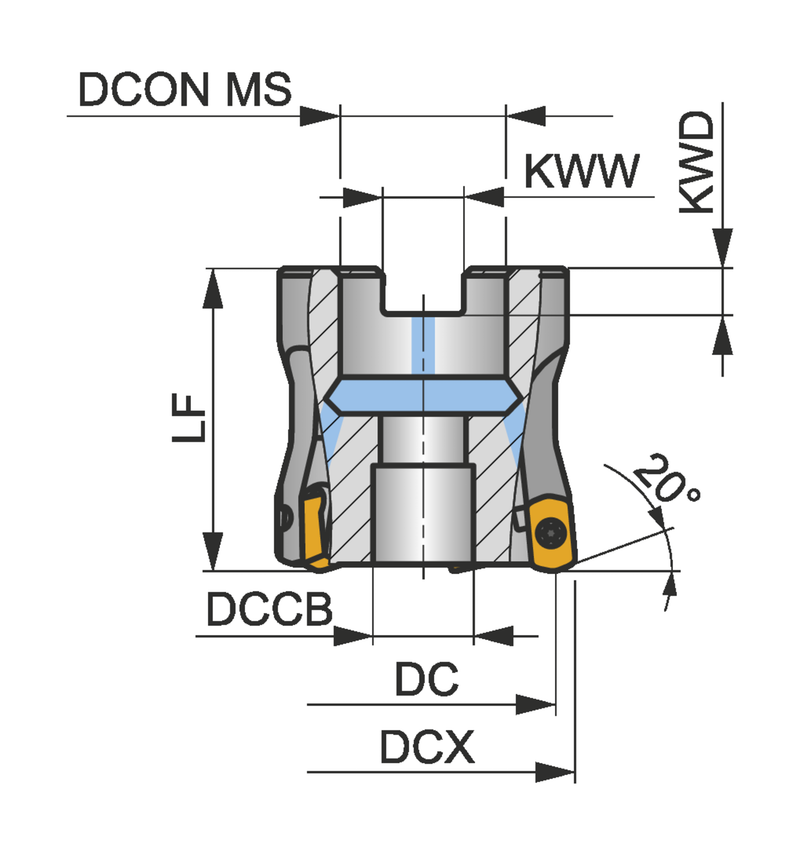

Dimensions
Cutting Diameter — in (DC)1.315"
Cutting Diameter — mm (DC)33.4 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSBN10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7464824
EAN3603603406018
File Type Download
40A05R-SMOBN10-C — 3D Model STP Download
40A05R-SMOBN10-C — 2D Model DXF Download
40A05R-SMOBN10-C — Line Drawing PDF Download
