150A07R-ISMOBN10-C
150A07R-ISMOBN10-C
150A07R-ISMOBN10-C

150A07R-ISMOBN10-C

UGC DOR7464890
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

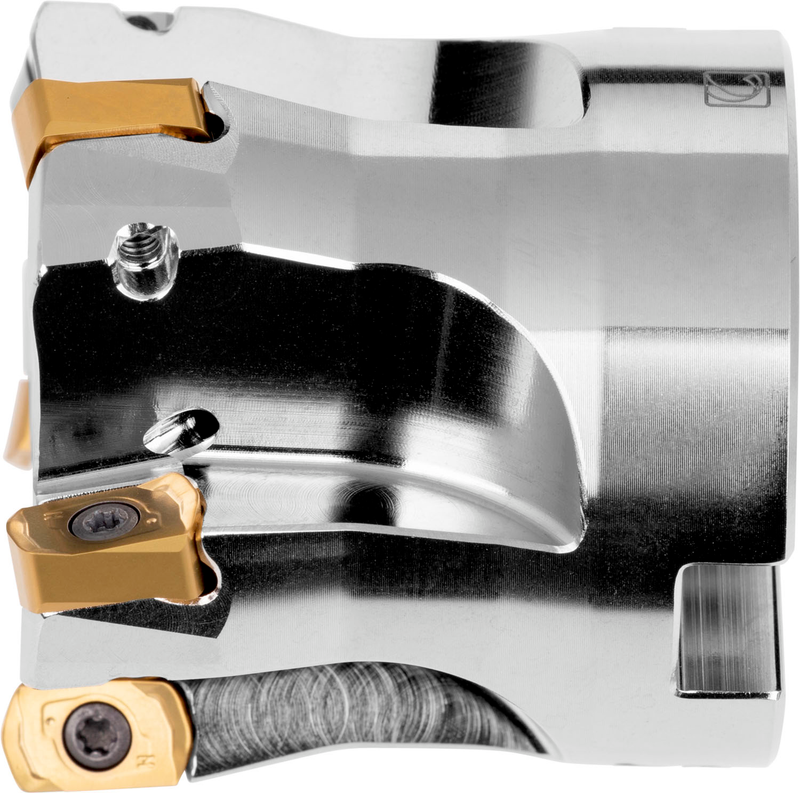

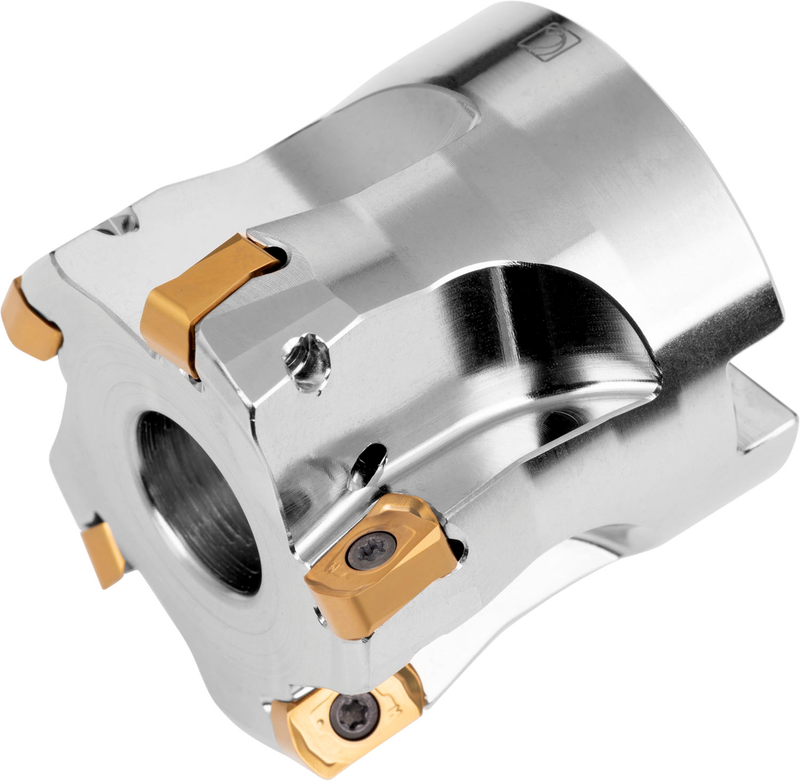

Fraise à avance rapide à géométrie double négative utilisant 7 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 1,50'' avec un angle d'attaque de 20° et un alésage de connexion de 0,50'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage par l'intérieur pour le surfaçage, le copiage, le fraisage d'épaulements profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,039''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A07R-ISMOBN10-C
Product Number7464890
Product FamilyISBN10

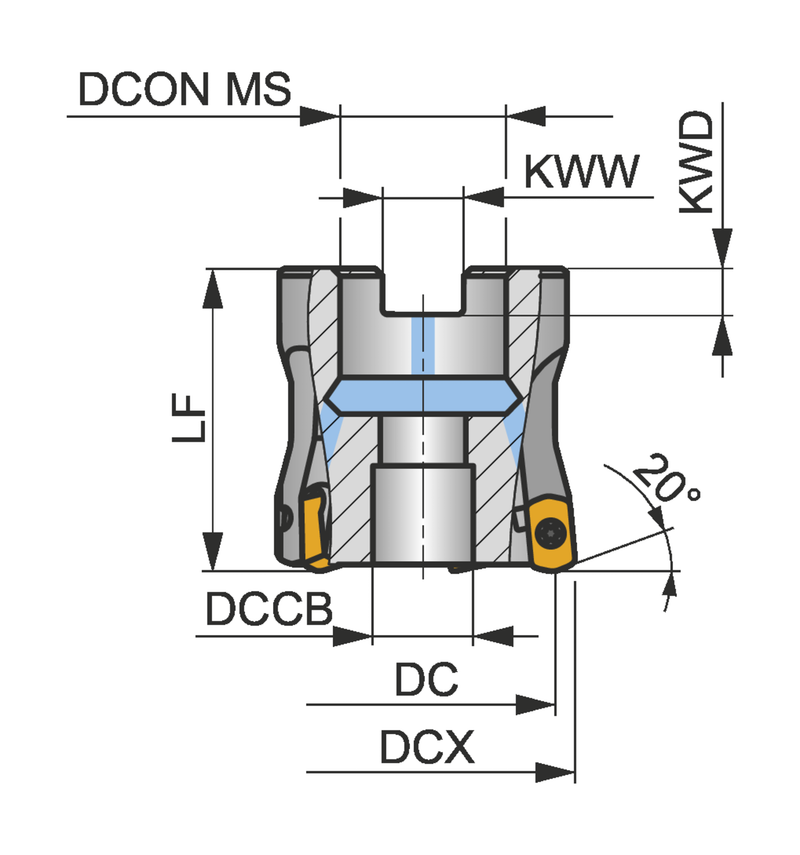

Dimensions
Cutting Diameter — in (DC)1.24"
Cutting Diameter — mm (DC)31.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSBN10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7464890
EAN3603603406087
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
150A07R-ISMOBN10-C — 3D Model STP Download
150A07R-ISMOBN10-C — 2D Model DXF Download
150A07R-ISMOBN10-C — Line Drawing PDF Download
