SA-10SDC
SA-10SDC

SA-10SDC

UGC PRE7466210
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 1

Fraise cylindrique sans coupe frontale (forme A), diamètre 1/4" avec une longueur de coupe de 1/2", une longueur totale de 2" et une tige de 1/8", à pointe carbure avec tige en acier trempé et revenu et finition brillante, style de cannelure à double taille DC avec bords rapprochés pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-10SDC
GradeLumineux
Product Number7466210
Product FamilyAS-CC
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466210
EAN7320760786802
File Type Download

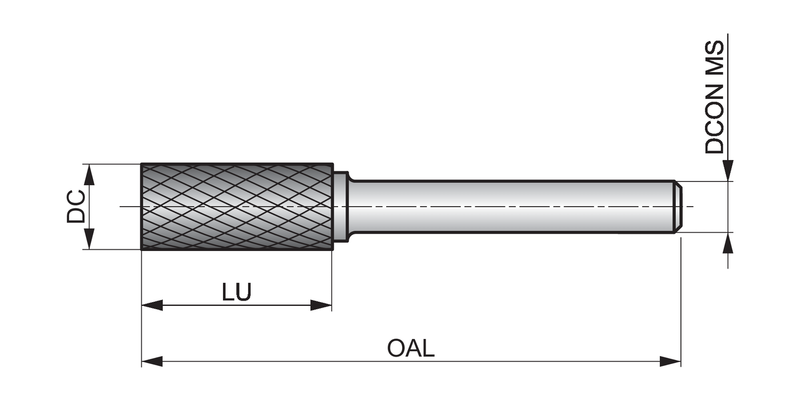

SA-10SDC — Line Drawing PDF Download
