SA-30DCX
SA-30DCX

SA-30DCX

UGC PRE7466215
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.06 CAD - $33.06 CAD
$33.06 CAD
$33.06 CAD - $33.06 CAD
$33.06 CAD

Vendu en lots de : 1

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 3/8" avec 3/4" de longueur de coupe, 6.3/4" de longueur totale et 1/4" de queue, à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure double coupe DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-30DCX
GradeLumineux
Product Number7466215
Product FamilySA-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)6.75"
Overall Length — mm (OAL)171.45 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466215
EAN7320760786857
File Type Download

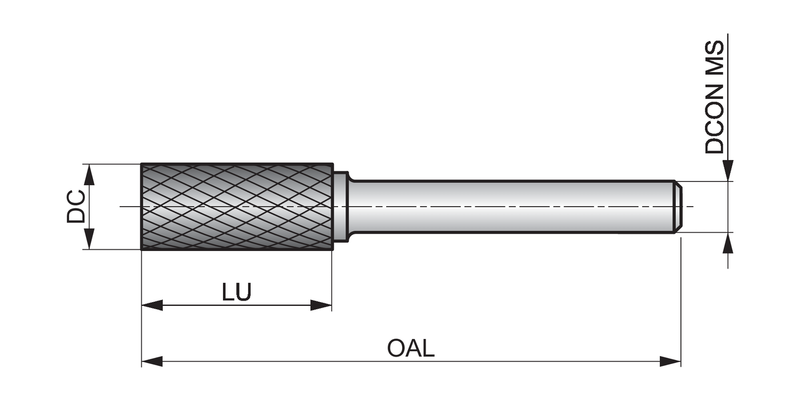

SA-30DCX — Line Drawing PDF Download
