SA-50DCX
SA-50DCX

SA-50DCX

UGC PRE7466217
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$44.91 CAD - $44.91 CAD
$44.91 CAD
$44.91 CAD - $44.91 CAD
$44.91 CAD

Vendu en lots de : 1

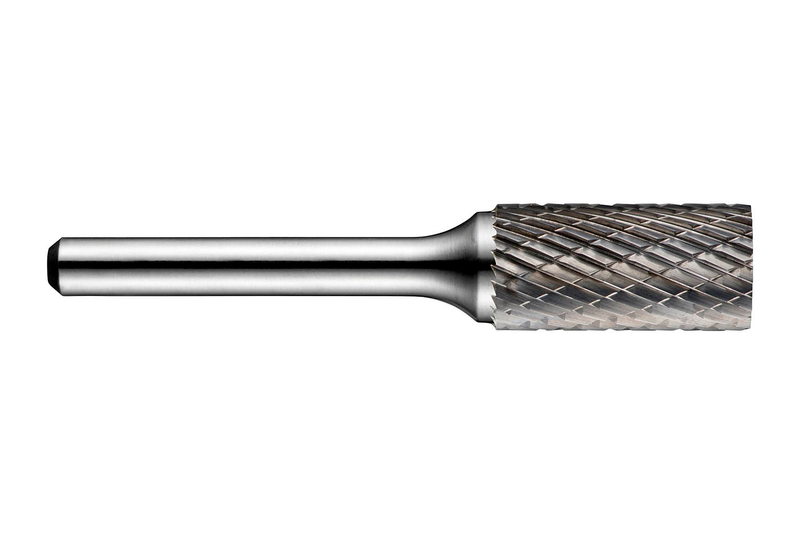

Fraise cylindrique sans coupe en bout (forme A), diamètre 1/2" avec 1" de longueur de coupe, 7" de longueur totale et 1/4" de queue, à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à double coupe DC avec bords rapprochés pour l'usinage des surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux durcis

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-50DCX
GradeLumineux
Product Number7466217
Product FamilySA-DC
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)7.0"
Overall Length — mm (OAL)177.8 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466217
EAN7320760786871
File Type Download

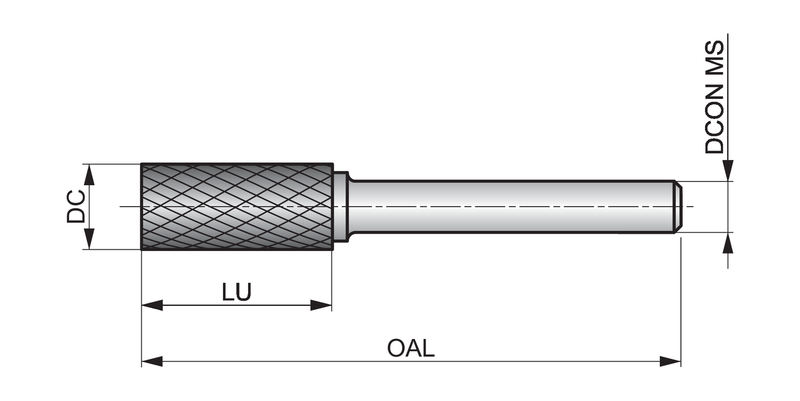

SA-50DCX — Line Drawing PDF Download
