SA-60DC
SA-60DC

SA-60DC

UGC PRE7466218
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.00 CAD - $41.00 CAD
$41.00 CAD
$41.00 CAD - $41.00 CAD
$41.00 CAD

Vendu en lots de : 1

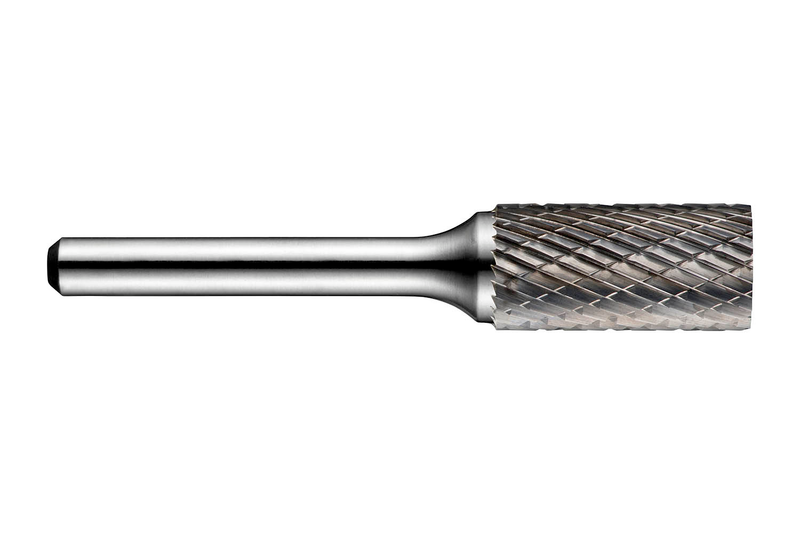

Fraise cylindrique sans coupe en bout (forme A), diamètre 5/8" avec une longueur de coupe de 1", une longueur totale de 2.3/4" et une queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à double coupe DC avec bords rapprochés pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-60DC
GradeLumineux
Product Number7466218
Product FamilyAS-DC
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466218
EAN7320760786888
File Type Download

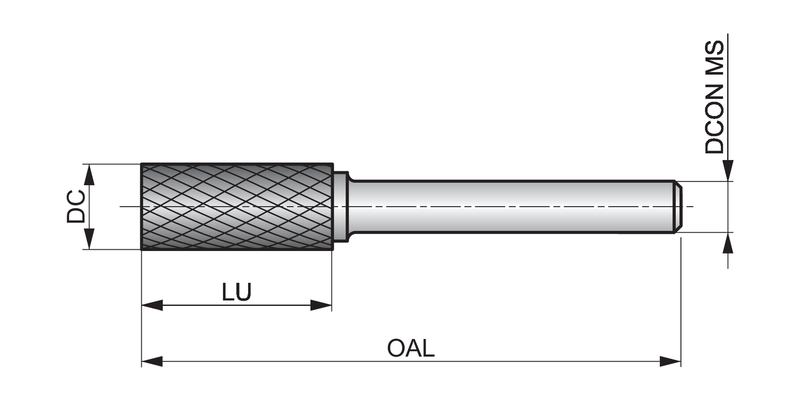

SA-60DC — Line Drawing PDF Download
