SA-70SDC-S
SA-70SDC-S

SA-70SDC-S

UGC PRE7466219
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.89 CAD - $48.89 CAD
$48.89 CAD
$48.89 CAD - $48.89 CAD
$48.89 CAD

Vendu en lots de : 1

Lime rotative cylindrique sans coupe frontale (forme A), diamètre 3/4" avec longueur de coupe de 3/4", longueur totale de 2.1/2" et queue de 1/4", à pastilles carbure avec queue en acier trempé et revenu et finition brillante, style de denture DC double taille avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-70SDC-S
GradeLumineux
Product Number7466219
Product FamilyAS-CV
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466219
EAN7320760786895
File Type Download

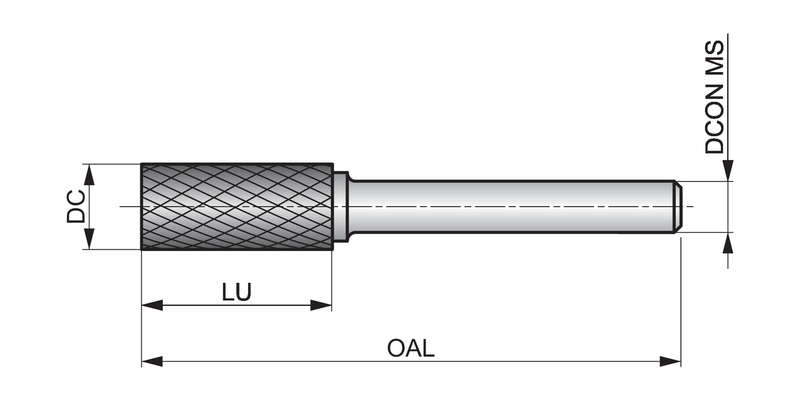

SA-70SDC-S — Line Drawing PDF Download
