SA-70DC
SA-70DC

SA-70DC

UGC PRE7466220
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.23 CAD - $61.23 CAD
$61.23 CAD
$61.23 CAD - $61.23 CAD
$61.23 CAD

Vendu en lots de : 1

Fraise cylindrique sans coupe en bout (forme A), diamètre 3/4" avec longueur de coupe de 1", longueur totale de 2.3/4" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à double taille DC avec bords rapprochés pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-70CC
GradeLumineux
Product Number7466220
Product FamilyAS-DC
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466220
EAN7320760786901
File Type Download

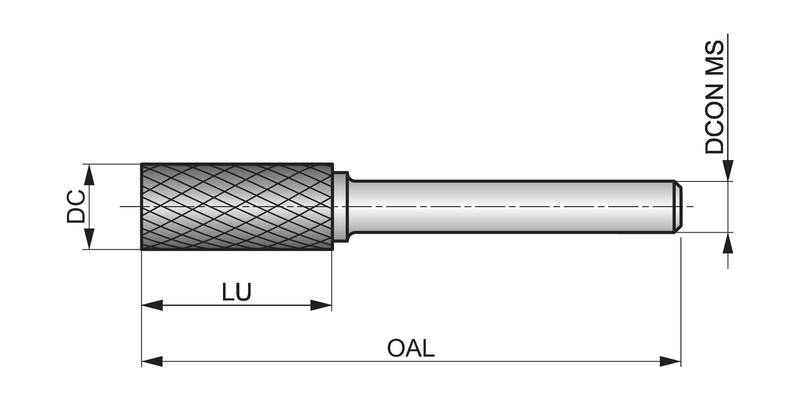

SA-70DC — Line Drawing PDF Download
