SA-90CC
SA-90CC

SA-90CC

UGC PRE7466221
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.46 CAD - $88.46 CAD
$88.46 CAD
$88.46 CAD - $88.46 CAD
$88.46 CAD

Vendu en lots de : 1

Fraise cylindrique sans coupe en bout (forme A), diamètre 1" avec longueur de coupe 1", longueur totale 2,3/4" et queue 1/4", à plaquettes carbure avec queue en acier trempé et revenu et finition brillante, double denture DC avec arêtes rapprochées pour l'usinage de surfaces en acier et acier moulé, acier inoxydable, fonte, cuivre ou alliages de cuivre, alliages à haute température, matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-90CC
GradeLumineux
Product Number7466221
Product FamilyAS-CD
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466221
EAN7320760786918
File Type Download

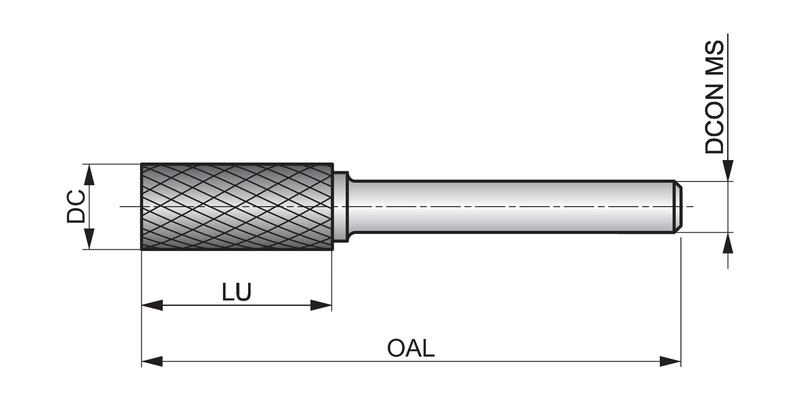

SA-90CC — Line Drawing PDF Download
