SA-10FM
SA-10FM

SA-10FM

UGC PRE7466222
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.51 CAD - $19.51 CAD
$19.51 CAD
$19.51 CAD - $19.51 CAD
$19.51 CAD

Vendu en lots de : 1

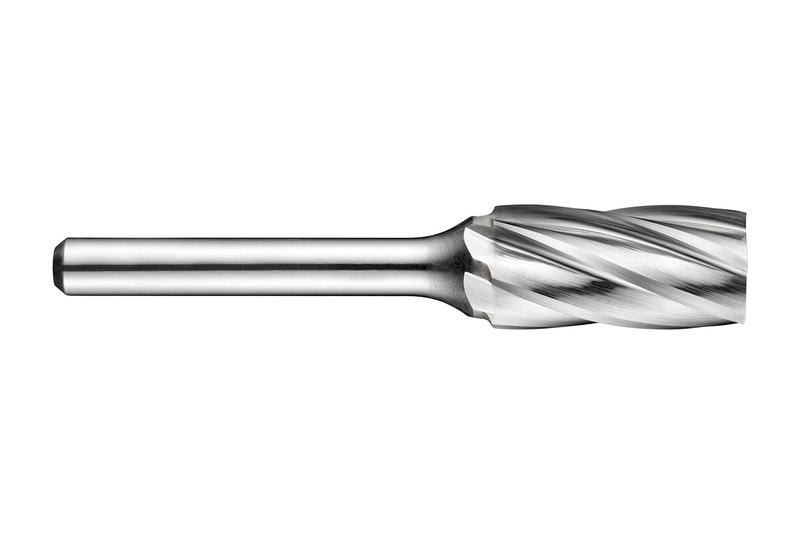

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 1/4" avec une longueur de coupe de 5/8", longueur totale de 2" et queue de 1/4", en carbure monobloc avec finition brillante, style de cannelure à coupe simple FM avec bords larges pour l'usinage de surfaces en aluminium forgé, moulé et polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-10FM
GradeLumineux
Product Number7466222
Product FamilyAS-FM

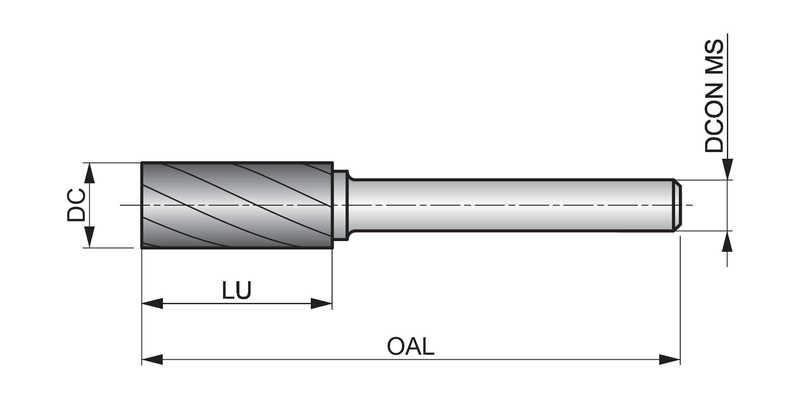

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466222
EAN7320760786925
File Type Download
SA-10FM — Line Drawing PDF Download
