SA-30FM
SA-30FM

SA-30FM

UGC PRE7466223
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.50 CAD - $26.50 CAD
$26.50 CAD
$26.50 CAD - $26.50 CAD
$26.50 CAD

Vendu en lots de : 1

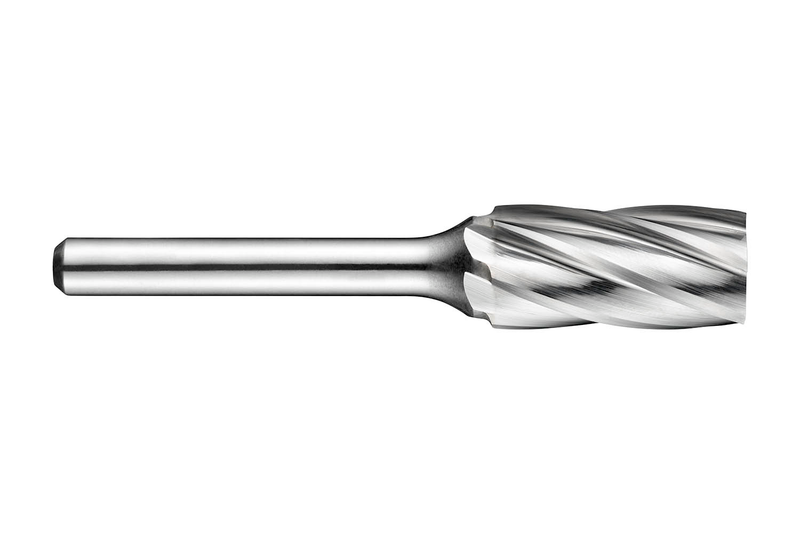

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 3/8" avec 3/4" de longueur de coupe, 2,1/2" de longueur totale et 1/4" de queue, à pointe carbure avec queue en acier trempé et revenu et finition brillante, à une seule taille FM avec bords espacés pour l'usinage de surfaces en aluminium corroyé, en fonte et en polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-30FM
GradeLumineux
Product Number7466223
Product FamilyAS-FM
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466223
EAN7320760786932
File Type Download

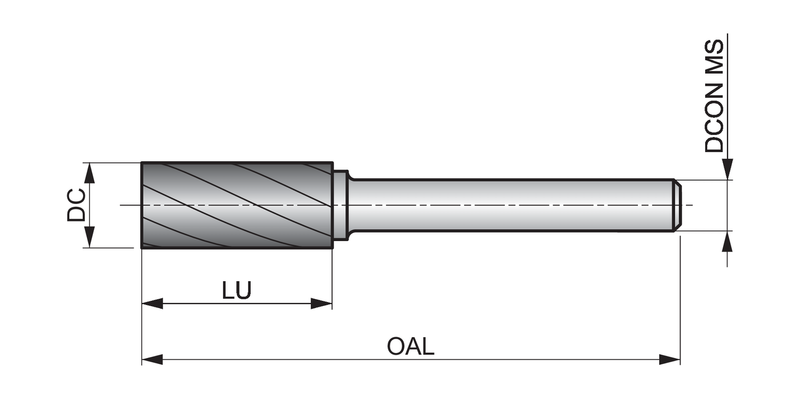

SA-30FM — Line Drawing PDF Download
