SA-50FM
SA-50FM

SA-50FM

UGC PRE7466224
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.63 CAD - $41.63 CAD
$41.63 CAD
$41.63 CAD - $41.63 CAD
$41.63 CAD

Vendu en lots de : 1

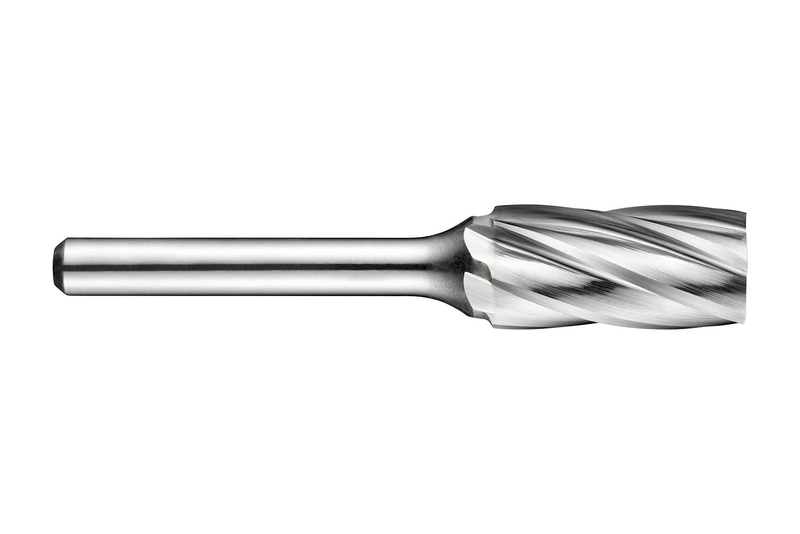

Fraise cylindrique sans coupe en bout (forme A), diamètre 1/2" avec longueur de coupe de 1", longueur totale de 2,3/4" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple taille FM avec bords largement espacés pour l'usinage de surfaces en aluminium corroyé, coulé et polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-50FM
GradeLumineux
Product Number7466224
Product FamilySA-FM

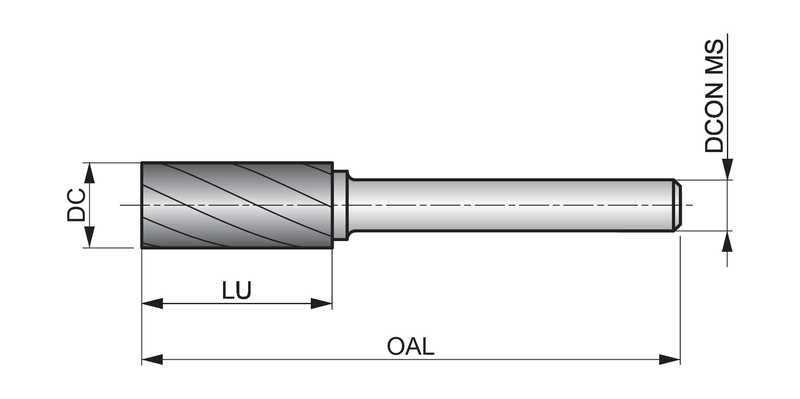

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466224
EAN7320760786949
File Type Download
SA-50FM — Line Drawing PDF Download
