SA-60FM
SA-60FM

SA-60FM

UGC PRE7466225
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.11 CAD - $52.11 CAD
$52.11 CAD
$52.11 CAD - $52.11 CAD
$52.11 CAD

Vendu en lots de : 1

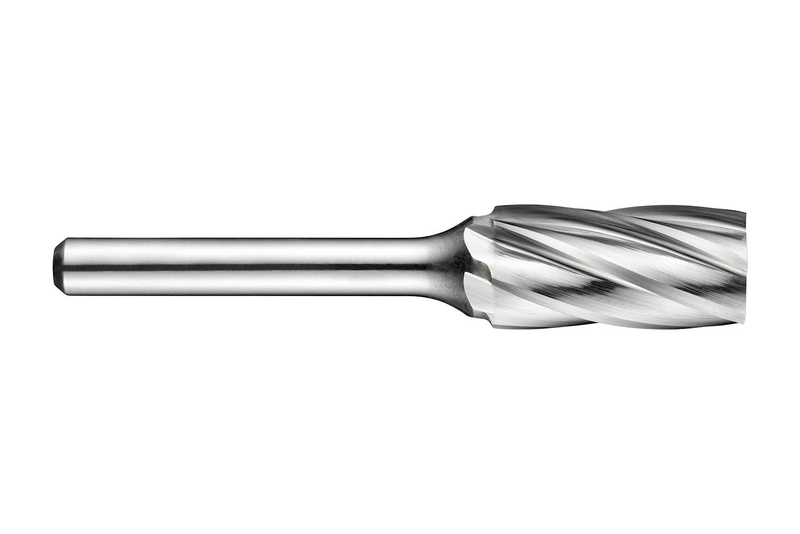

Fraise-lime cylindrique sans coupe en bout (forme A), diamètre 5/8" avec longueur de coupe de 1", longueur totale de 2.3/4" et queue de 1/4", à pastilles carbure avec queue en acier trempé et revenu et finition brillante, taille simple FM avec arêtes larges pour l'usinage de surfaces en aluminium forgé, coulé et en polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SA-60FM
GradeLumineux
Product Number7466225
Product FamilyAS-FM
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466225
EAN7320760786956
File Type Download

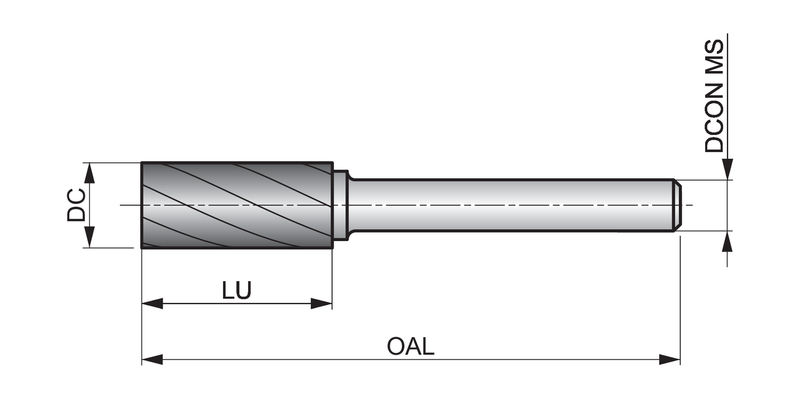

SA-60FM — Line Drawing PDF Download
