SB-30DC
SB-30DC

SB-30DC

UGC PRE7466232
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.63 CAD - $22.63 CAD
$22.63 CAD
$22.63 CAD - $22.63 CAD
$22.63 CAD

Vendu en lots de : 1

Fraise-lime cylindrique à coupe frontale (forme B), diamètre 3/8" avec longueur de coupe de 3/4", longueur totale de 2.1/2" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double denture DC avec arêtes rapprochées pour l'usinage de surfaces et d'angles droits dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SB-30DC
GradeLumineux
Product Number7466232
Product FamilySB-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466232
EAN7320760787021
File Type Download

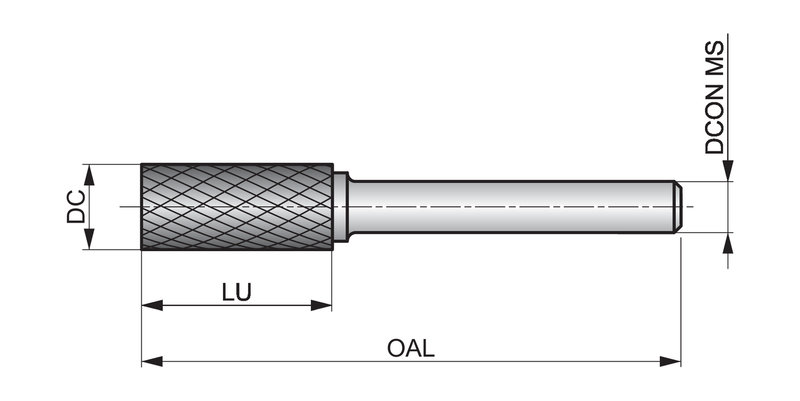

SB-30DC — Line Drawing PDF Download
