SB-90DC
SB-90DC

SB-90DC

UGC PRE7466240
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.74 CAD - $98.74 CAD
$98.74 CAD
$98.74 CAD - $98.74 CAD
$98.74 CAD

Vendu en lots de : 1

Lime-râpe cylindrique avec coupe frontale (forme B), diamètre 1" avec longueur de coupe de 1", longueur totale de 2,3/4" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double denture DC avec bords rapprochés pour l'usinage de surfaces et de coins à angle droit dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SB-90DC
GradeLumineux
Product Number7466240
Product FamilySB-CC
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466240
EAN7320760787106
File Type Download

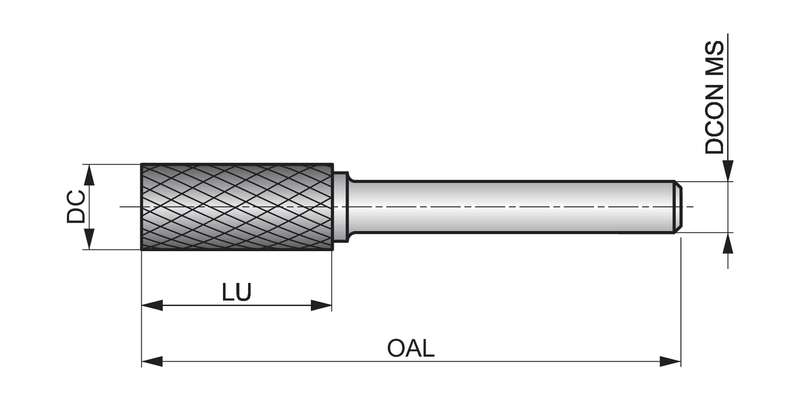

SB-90DC — Line Drawing PDF Download
