SB-50FM
SB-50FM

SB-50FM

UGC PRE7466243
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.36 CAD - $46.36 CAD
$46.36 CAD
$46.36 CAD - $46.36 CAD
$46.36 CAD

Vendu en lots de : 1

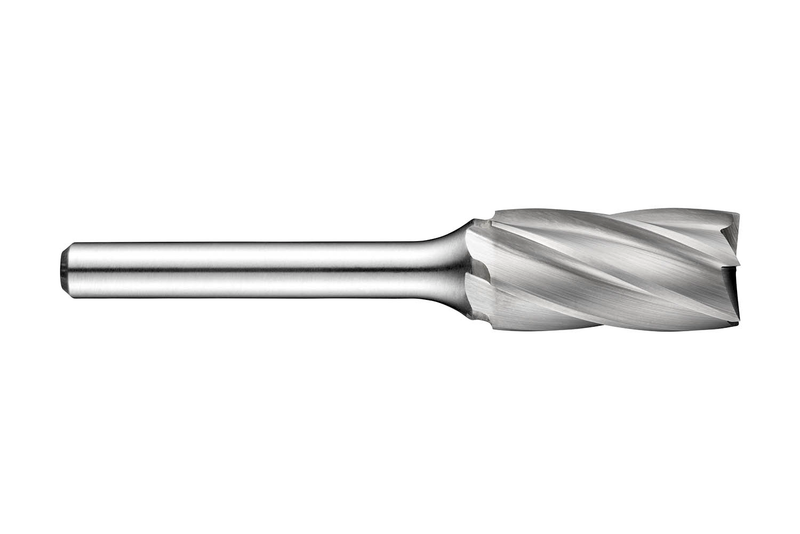

Fraise cylindrique avec coupe frontale (forme B), diamètre 1/2" avec 1" de longueur de coupe, 2,3/4" de longueur totale et queue de 1/4", à pastilles carbure avec queue en acier trempé et revenu et finition brillante, à une seule coupe FM avec bords largement espacés pour l'usinage de surfaces et d'angles droits dans l'aluminium forgé et moulé et les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SB-50FM
GradeLumineux
Product Number7466243
Product FamilySB-FM
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466243
EAN7320760787137
File Type Download

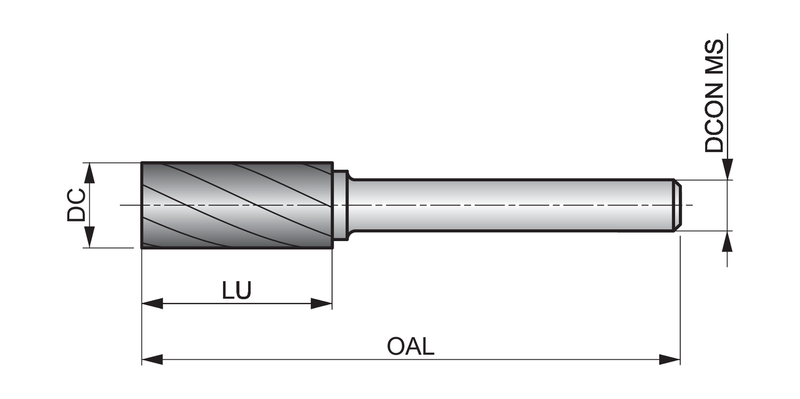

SB-50FM — Line Drawing PDF Download
