SC-02DC-L
SC-02DC-L

SC-02DC-L

UGC PRE7466247
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 1

Fraise cylindrique avec extrémité sphérique (forme C), diamètre 1/8" avec longueur de coupe de 9/16", longueur totale de 3" et queue de 1/8", carbure monobloc finition brillante, taille double coupe DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-02DC-L
GradeLumineux
Product Number7466247
Product FamilySC-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Usable Length — mm (LU)14.29 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466247
EAN7320760787175
File Type Download

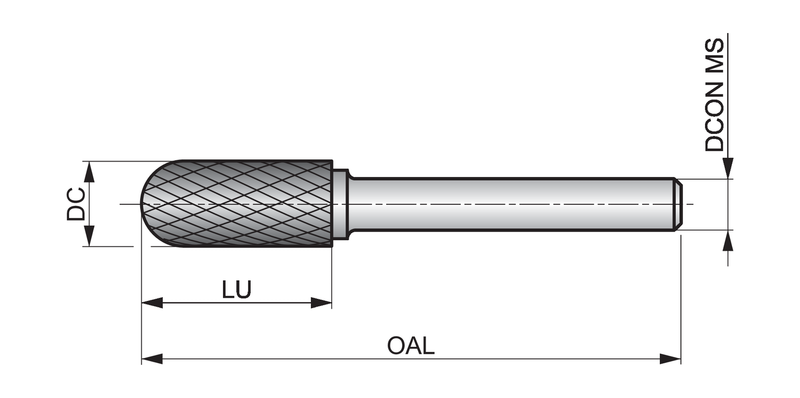

SC-02DC-L — Line Drawing PDF Download
