SC-02MDC
SC-02MDC

SC-02MDC

UGC PRE7466248
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.66 CAD - $17.66 CAD
$17.66 CAD
$17.66 CAD - $17.66 CAD
$17.66 CAD

Vendu en lots de : 1

Lime rotative cylindrique à bout sphérique (forme C), diamètre 1/8" avec une longueur de coupe de 5/8", une longueur totale de 2" et une tige de 1/4", en carbure monobloc avec finition brillante, double coupe DC avec arêtes rapprochées pour l'usinage des contours et des arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-02MDC
GradeLumineux
Product Number7466248
Product FamilySC-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466248
EAN7320760787182
File Type Download

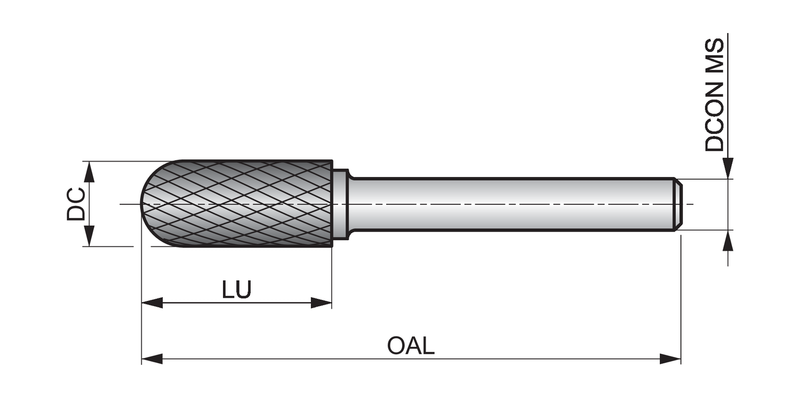

SC-02MDC — Line Drawing PDF Download
