SC-01DC
SC-01DC

SC-01DC

UGC PRE7466249
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.41 CAD - $18.41 CAD
$18.41 CAD
$18.41 CAD - $18.41 CAD
$18.41 CAD

Vendu en lots de : 1

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3/16" avec une longueur de coupe de 5/8", longueur totale de 2" et queue de 1/4", en carbure monobloc à finition brillante, style de denture double taillage DC à bords rapprochés pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-01DC
GradeLumineux
Product Number7466249
Product FamilySC-CD
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466249
EAN7320760787199
File Type Download

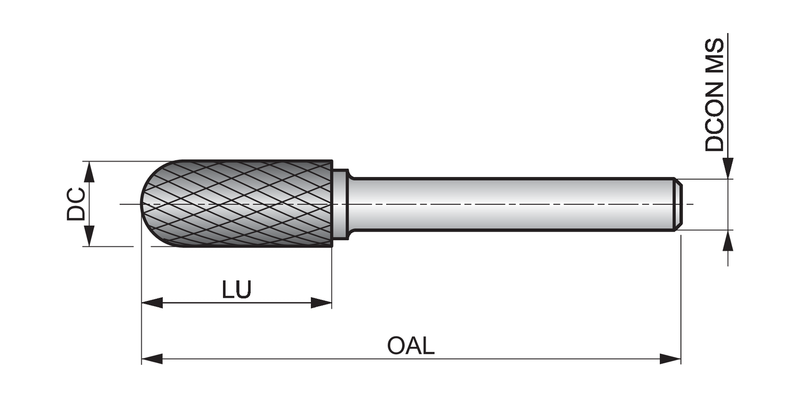

SC-01DC — Line Drawing PDF Download
