SC-30DC
SC-30DC

SC-30DC

UGC PRE7466254
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.94 CAD - $22.94 CAD
$22.94 CAD
$22.94 CAD - $22.94 CAD
$22.94 CAD

Vendu en lots de : 1

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3/8" avec 3/4" de longueur de coupe, 2,1/2" de longueur totale et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à double taille DC avec bords rapprochés pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-30DC
GradeLumineux
Product Number7466254
Product FamilySC-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466254
EAN7320760787243
File Type Download

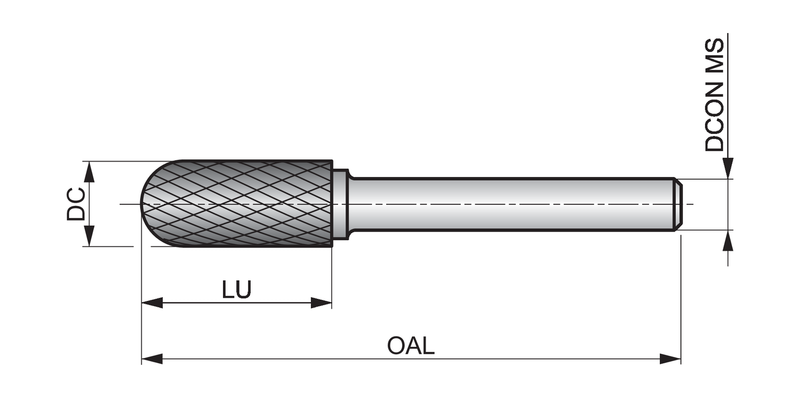

SC-30DC — Line Drawing PDF Download
