SC-40CC
SC-40CC

SC-40CC

UGC PRE7466256
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.40 CAD - $33.40 CAD
$33.40 CAD
$33.40 CAD - $33.40 CAD
$33.40 CAD

Vendu en lots de : 1

Fraise cylindrique en carbure de tungstène à bout sphérique (forme C), diamètre 7/16", longueur de coupe 1", longueur totale 2.3/4" et queue 1/4", avec queue en acier trempé et revenu et finition brillante, double denture croisée DC avec arêtes rapprochées pour l'usinage de contours et d'arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-40DC
GradeLumineux
Product Number7466256
Product FamilySC-DC
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466256
EAN7320760787267
File Type Download

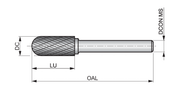

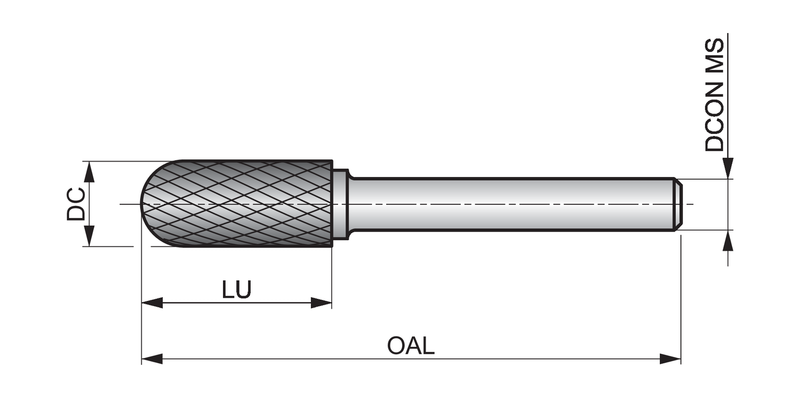

SC-40CC — Line Drawing PDF Download
