SC-60DC
SC-60DC

SC-60DC

UGC PRE7466259
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.80 CAD - $45.80 CAD
$45.80 CAD
$45.80 CAD - $45.80 CAD
$45.80 CAD

Vendu en lots de : 1

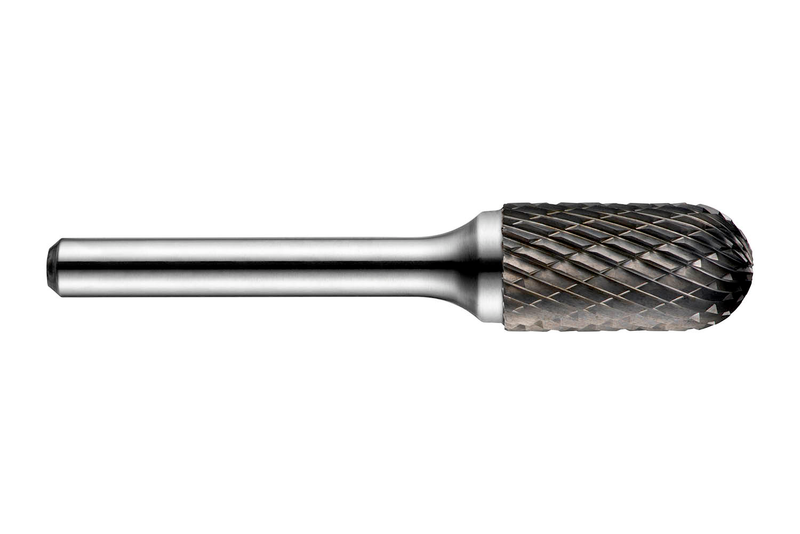

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 5/8" avec longueur de coupe 1", longueur totale 2.3/4" et queue 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure double taille DC avec arêtes rapprochées pour l'usinage des contours et des arcs circulaires dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-60DC
GradeLumineux
Product Number7466259
Product FamilySC-DC

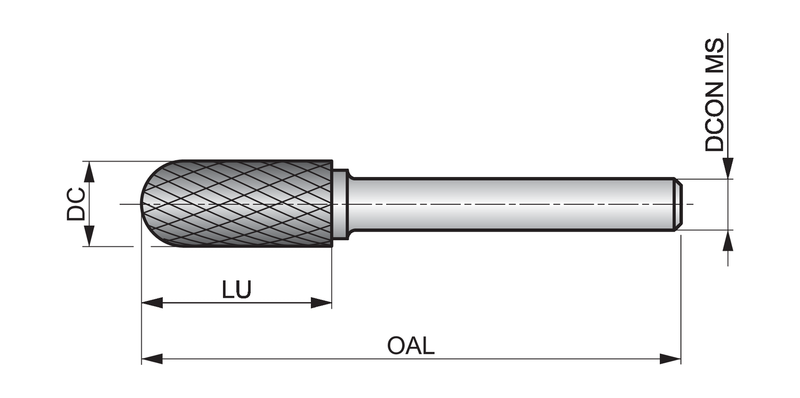

Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466259
EAN7320760787298
File Type Download
SC-60DC — Line Drawing PDF Download
