SC-10SFM-R
SC-10SFM-R

SC-10SFM-R

UGC PRE7466262
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.93 CAD - $17.93 CAD
$17.93 CAD
$17.93 CAD - $17.93 CAD
$17.93 CAD

Vendu en lots de : 1

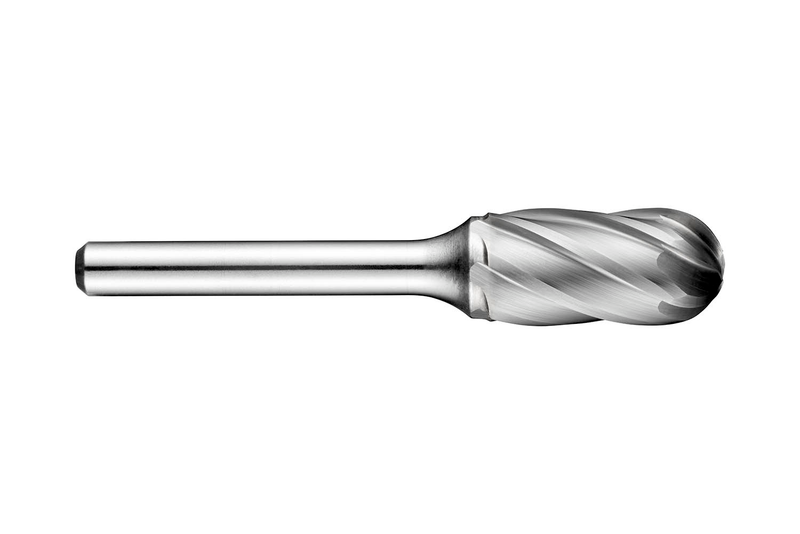

Lime-râpe cylindrique avec nez sphérique (forme C), diamètre 1/4" avec longueur de coupe 1/2", longueur totale 2" et queue 1/8", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de denture à coupe unique FM avec bords largement espacés pour l'usinage de contours et d'arcs circulaires dans les polymères renforcés de fibres de verre, l'aluminium corroyé et moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-10SFM-R
GradeLumineux
Product Number7466262
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)12.7 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466262
EAN7320760787328
File Type Download

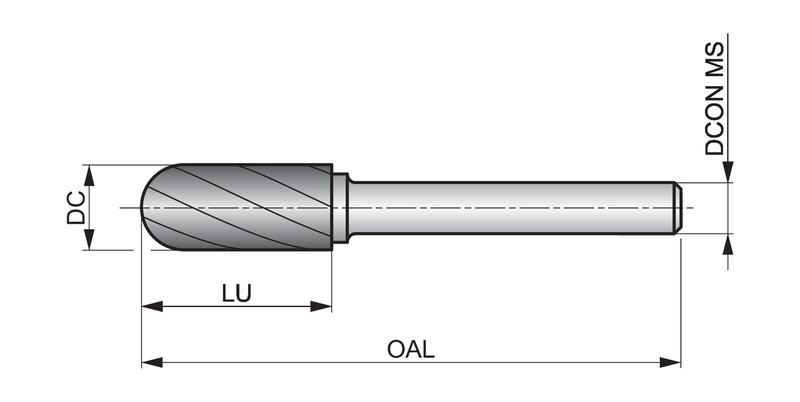

SC-10SFM-R — Line Drawing PDF Download
