SC-10FM
SC-10FM

SC-10FM

UGC PRE7466263
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.97 CAD - $23.97 CAD
$23.97 CAD
$23.97 CAD - $23.97 CAD
$23.97 CAD

Vendu en lots de : 1

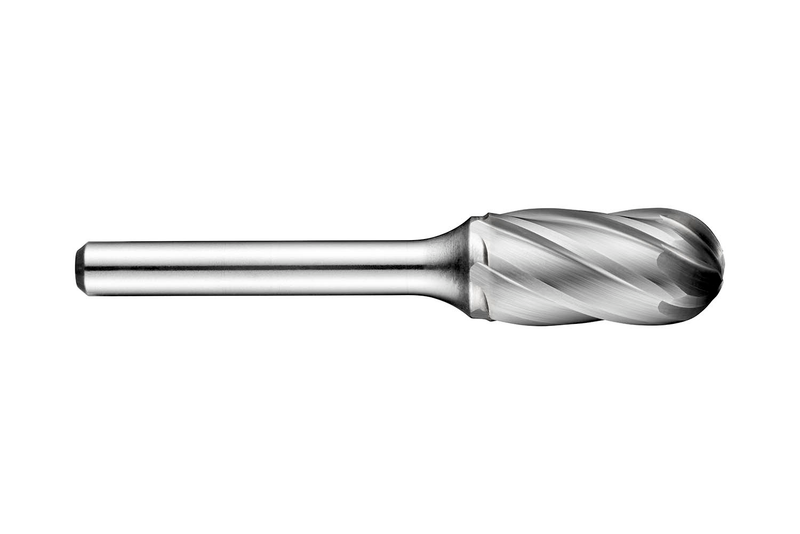

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 1/4" avec une longueur de coupe de 5/8", longueur totale de 2" et queue de 1/4", carbure monobloc avec finition brillante, style de cannelure simple taille FM avec bords larges pour l'usinage de contours et d'arcs circulaires dans l'aluminium forgé et moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-10FM
GradeLumineux
Product Number7466263
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466263
EAN7320760787335
File Type Download

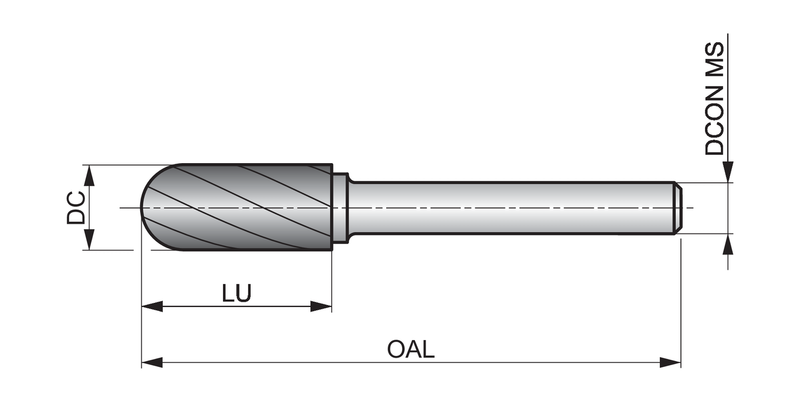

SC-10FM — Line Drawing PDF Download
