SC-30FM
SC-30FM

SC-30FM

UGC PRE7466264
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.46 CAD - $29.46 CAD
$29.46 CAD
$29.46 CAD - $29.46 CAD
$29.46 CAD

Vendu en lots de : 1

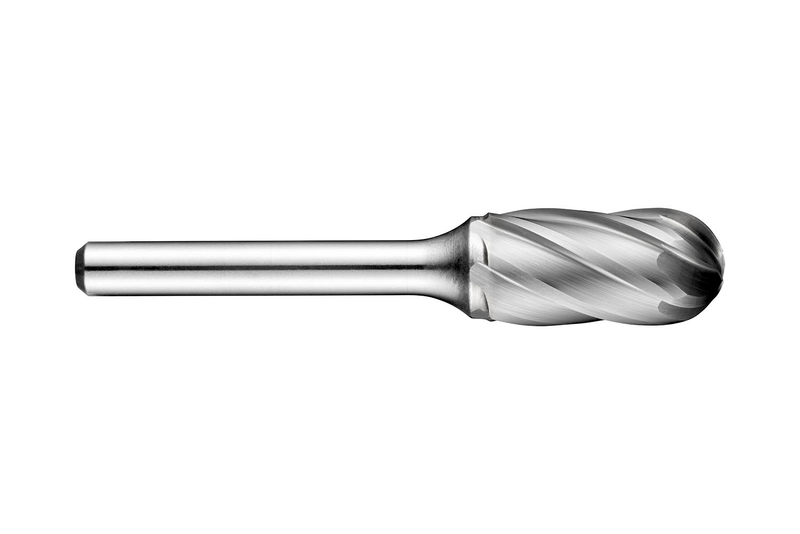

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3/8" avec longueur de coupe de 3/4", longueur totale de 2.1/2" et queue de 1/4", carbure monobloc avec queue en acier trempé et revenu et finition brillante, forme de denture FM à taille unique avec bords larges pour l'usinage de contours et d'arcs circulaires dans l'aluminium forgé, moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-30FM
GradeLumineux
Product Number7466264
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466264
EAN7320760787342
File Type Download

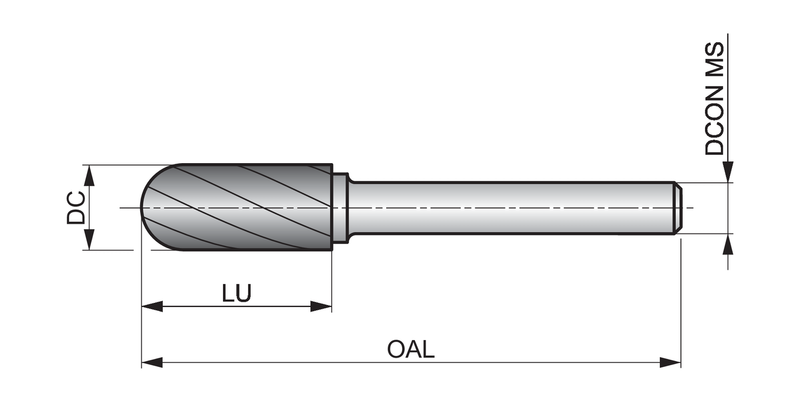

SC-30FM — Line Drawing PDF Download
