SC-50FM
SC-50FM

SC-50FM

UGC PRE7466266
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.36 CAD - $46.36 CAD
$46.36 CAD
$46.36 CAD - $46.36 CAD
$46.36 CAD

Vendu en lots de : 1

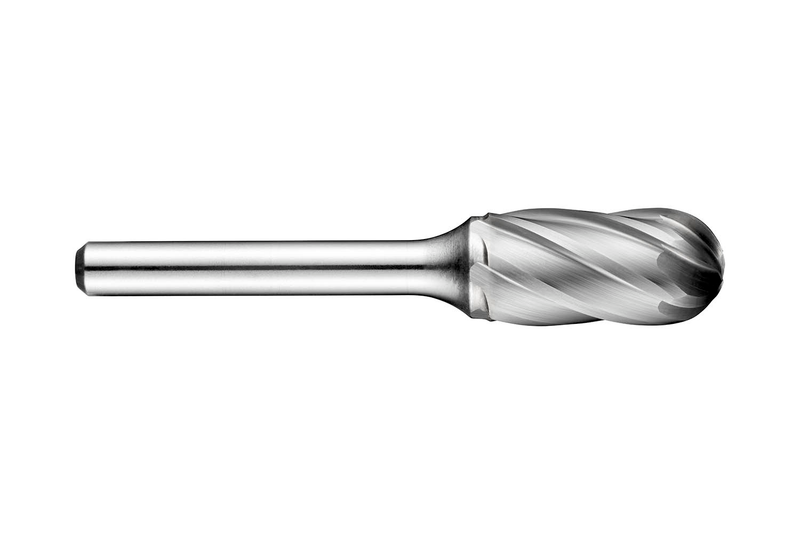

Fraise cylindrique avec extrémité sphérique (forme C), diamètre 1/2" avec 1" de longueur de coupe, 2,3/4" de longueur totale et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure à coupe unique FM avec bords larges spécifiés pour l'usinage de contours et d'arcs circulaires dans l'aluminium forgé et moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-50FM
GradeLumineux
Product Number7466266
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466266
EAN7320760787366
File Type Download

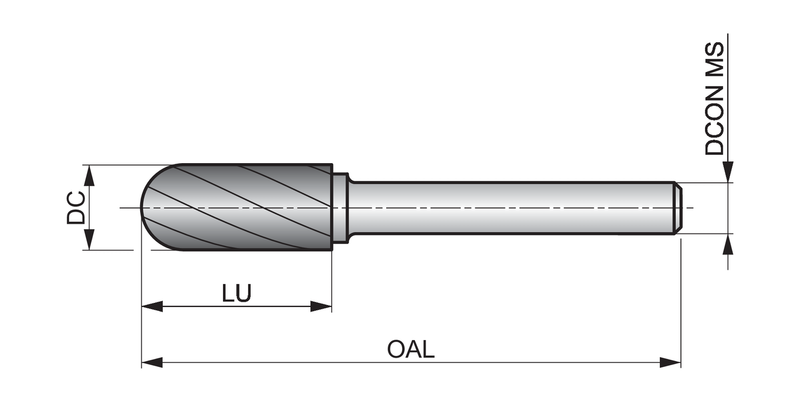

SC-50FM — Line Drawing PDF Download
