SC-70FM
SC-70FM

SC-70FM

UGC PRE7466268
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$83.66 CAD - $83.66 CAD
$83.66 CAD
$83.66 CAD - $83.66 CAD
$83.66 CAD

Vendu en lots de : 1

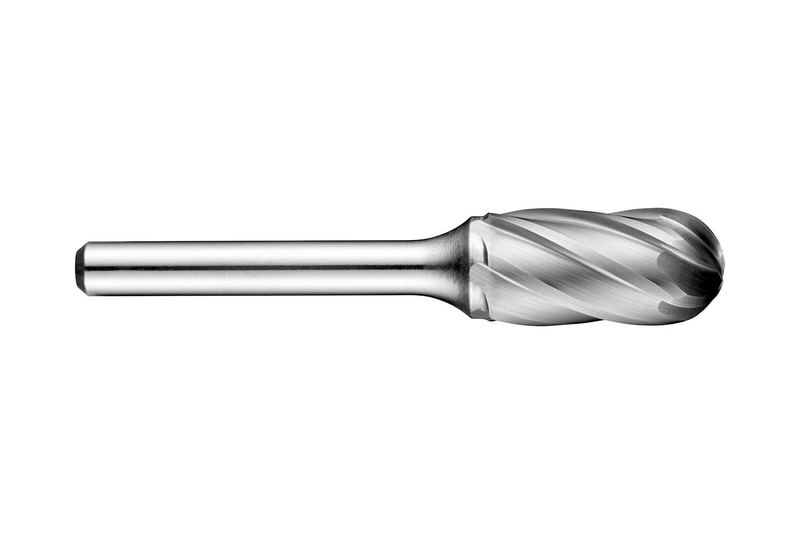

Fraise-lime cylindrique à bout sphérique (forme C), diamètre 3/4" avec longueur de coupe de 1", longueur totale de 2.3/4" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, à une seule coupe de type FM avec arêtes espacées pour l'usinage de contours et d'arcs circulaires dans l'aluminium corroyé, coulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-70FM
GradeLumineux
Product Number7466268
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466268
EAN7320760787380
File Type Download

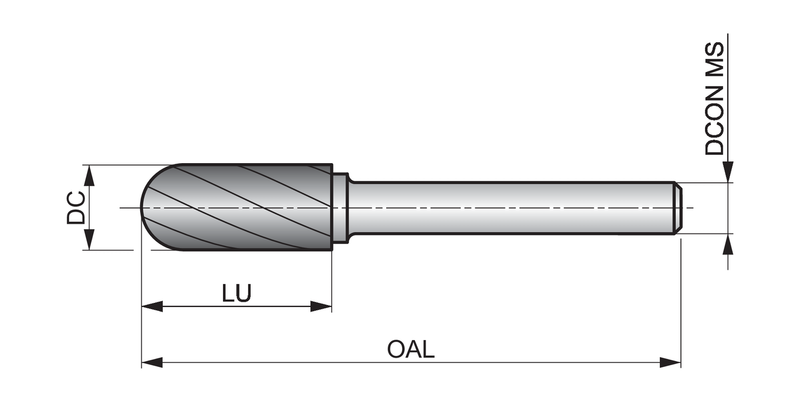

SC-70FM — Line Drawing PDF Download
