SD-03DC
SD-03DC

SD-03DC

UGC PRE7466269
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.13 CAD - $8.13 CAD
$8.13 CAD
$8.13 CAD - $8.13 CAD
$8.13 CAD

Vendu en lots de : 1

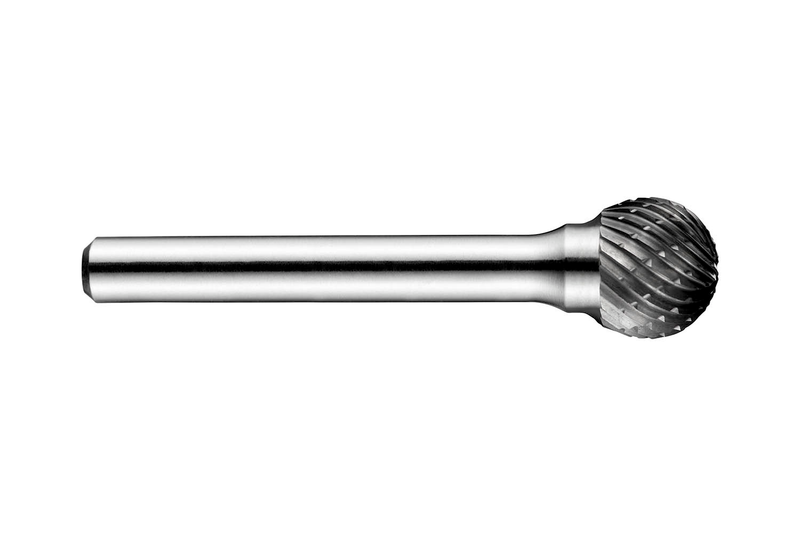

Fraise boule (forme D), diamètre 3/32" avec une longueur de coupe de 3/32", longueur totale de 1,1/2" et queue de 1/8", carbure monobloc avec finition brillante, double coupe à denture croisée avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SD-03DC
GradeLumineux
Product Number7466269
Product FamilySD-DC

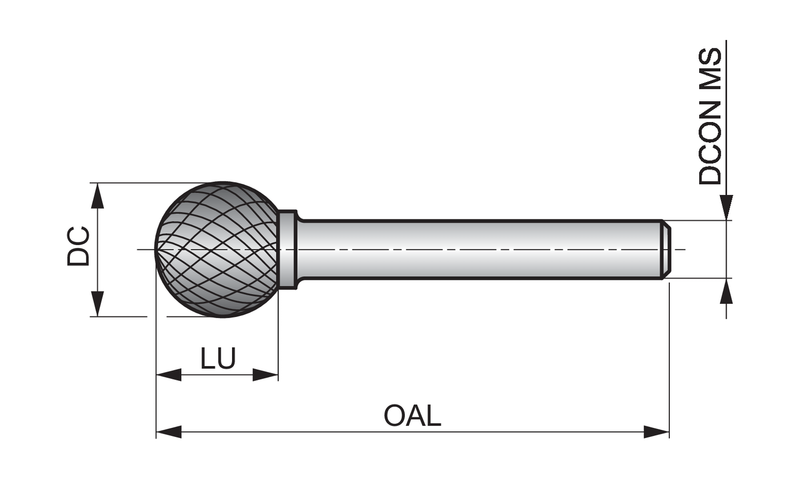

Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Usable Length — mm (LU)2.38 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466269
EAN7320760787397
File Type Download
SD-03DC — Line Drawing PDF Download
