SD-02DC-L
SD-02DC-L

SD-02DC-L

UGC PRE7466272
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 1

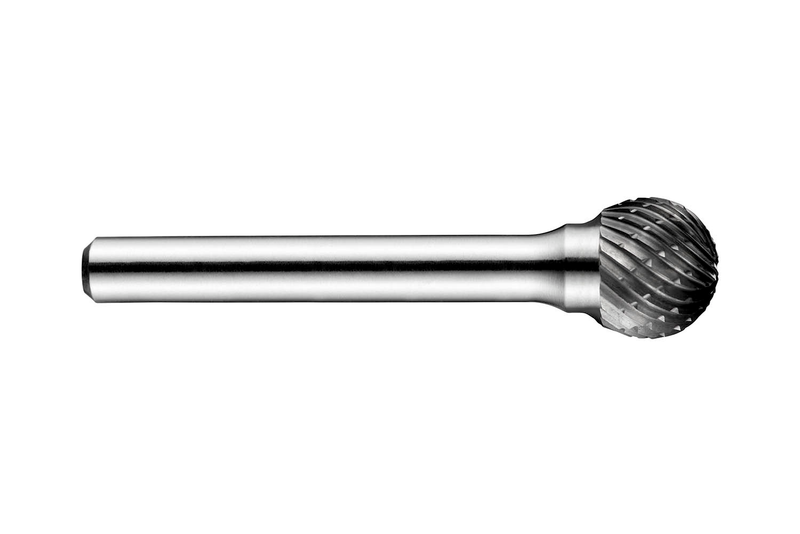

Fraise boule (forme D), diamètre 1/8" avec 1/8" de longueur de coupe, 3" de longueur totale et queue de 1/8", carbure monobloc avec finition brillante, style de cannelure à double taille DC avec bords rapprochés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux durcis

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SD-02DC-L
GradeLumineux
Product Number7466272
Product FamilySD-DC

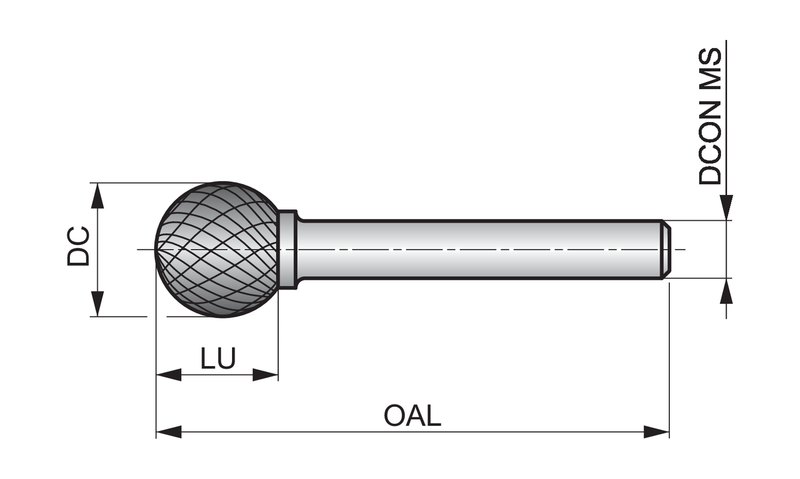

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Usable Length — mm (LU)3.18 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466272
EAN7320760787427
File Type Download
SD-02DC-L — Line Drawing PDF Download
