SD-50DC-X
SD-50DC-X

SD-50DC-X

UGC PRE7466284
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.74 CAD - $38.74 CAD
$38.74 CAD
$38.74 CAD - $38.74 CAD
$38.74 CAD

Vendu en lots de : 1

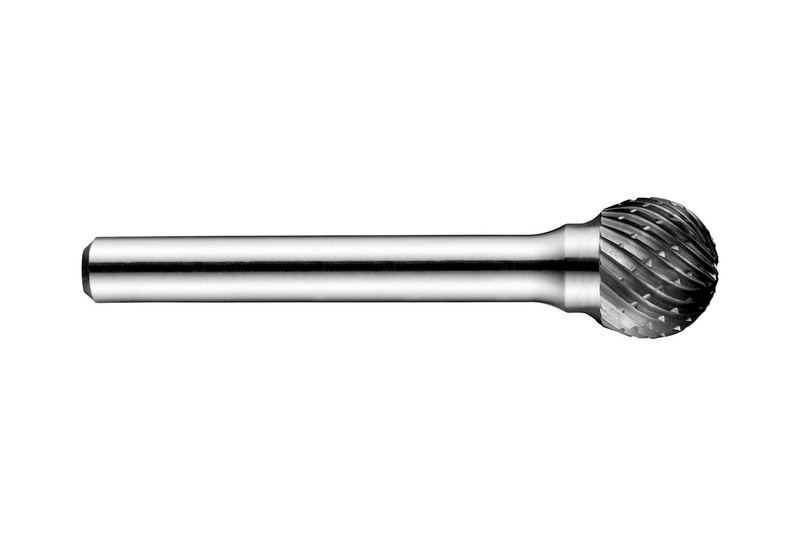

Fraise boule (forme D), diamètre 1/2" avec longueur de coupe 7/16", longueur totale 6,1/2" et queue 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SD-50DC-X
GradeLumineux
Product Number7466284
Product FamilySD-CC

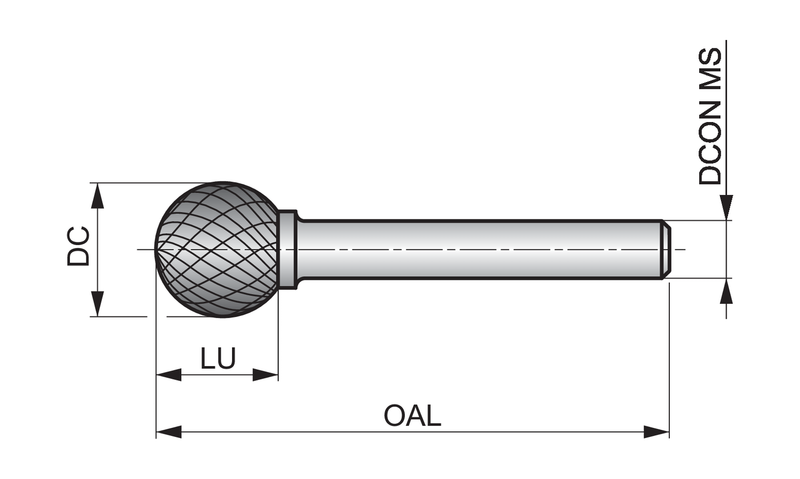

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.5"
Overall Length — mm (OAL)165.1 mm
Usable Length — mm (LU)11.11 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466284
EAN7320760787540
File Type Download
SD-50DC-X — Line Drawing PDF Download
