SD-30FM
SD-30FM

SD-30FM

UGC PRE7466288
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.71 CAD - $25.71 CAD
$25.71 CAD
$25.71 CAD - $25.71 CAD
$25.71 CAD

Vendu en lots de : 1

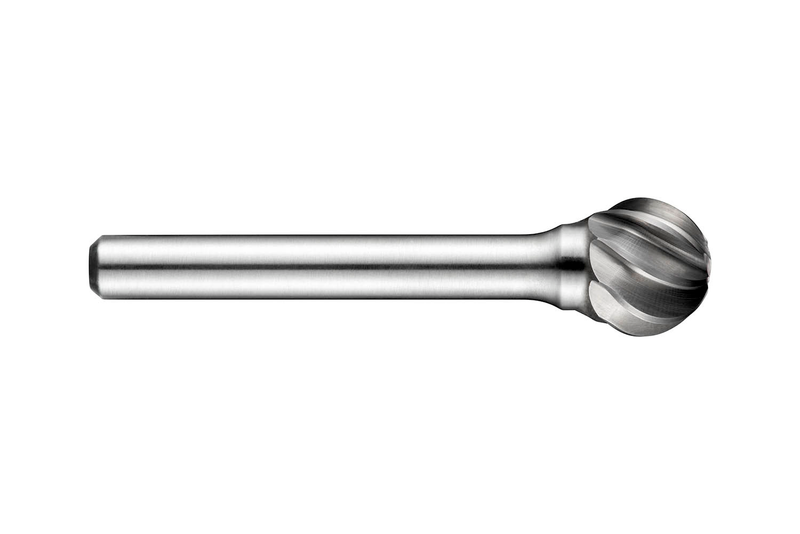

Fraise boule (forme D), diamètre 3/8" avec une longueur de coupe de 5/16", longueur totale de 2.1/8" et queue de 1/4", à pointe carbure avec queue en acier trempé et durci et finition brillante, style de cannelure simple taille FM avec des bords largement spécifiés pour la sculpture complexe, la gravure sur métal et la préparation de soudure dans les polymères renforcés de fibre de verre, d'aluminium forgé et moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SD-30FM
GradeLumineux
Product Number7466288
Product FamilySD-FM

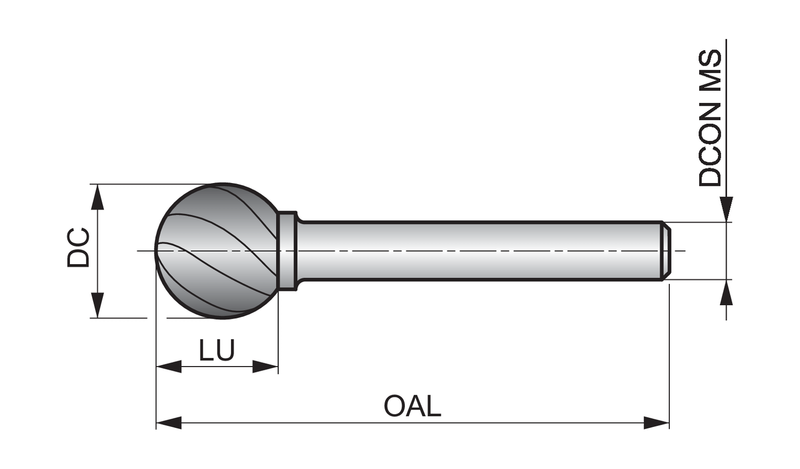

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Usable Length — mm (LU)7.94 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466288
EAN7320760787588
File Type Download
SD-30FM — Line Drawing PDF Download
