SE-10DC-R
SE-10DC-R

SE-10DC-R

UGC PRE7466291
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 1

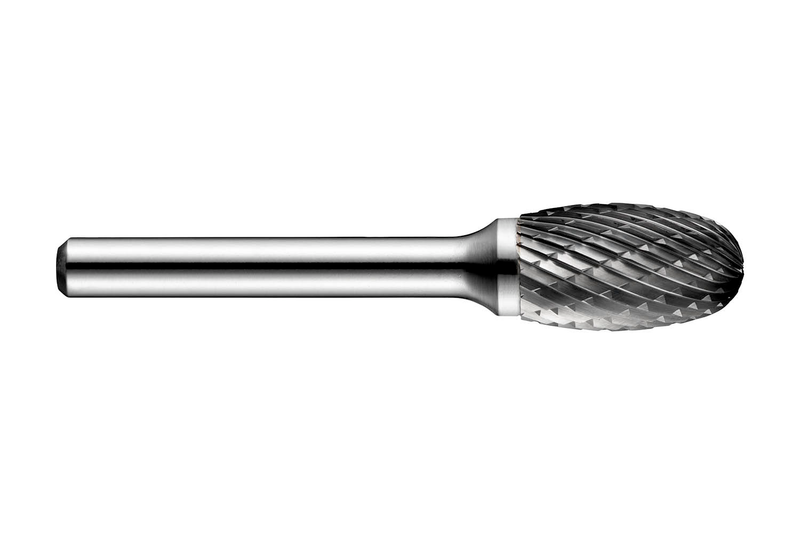

Fraise ovale (forme E), diamètre 1/4" avec longueur de coupe de 3/8", longueur totale de 1,3/4" et queue de 1/8", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour le contournage d'arêtes arrondies dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SE-10DC-R
GradeLumineux
Product Number7466291
Product FamilySE-DC

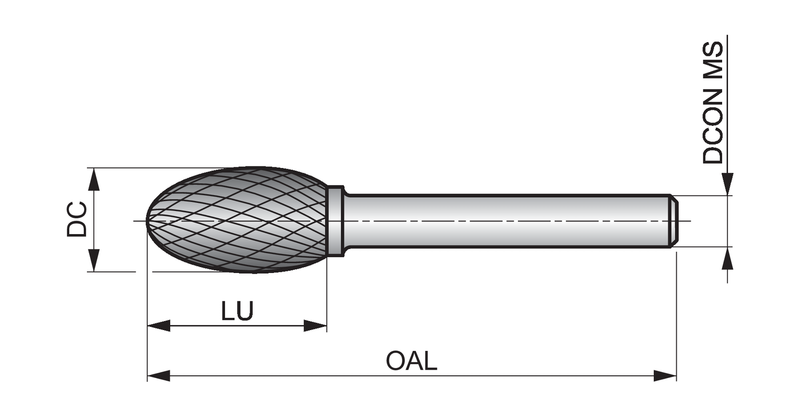

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Usable Length — mm (LU)9.53 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466291
EAN7320760787618
File Type Download
SE-10DC-R — Line Drawing PDF Download
