SE-30DC-X
SE-30DC-X

SE-30DC-X

UGC PRE7466295
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.91 CAD - $37.91 CAD
$37.91 CAD
$37.91 CAD - $37.91 CAD
$37.91 CAD

Vendu en lots de : 1

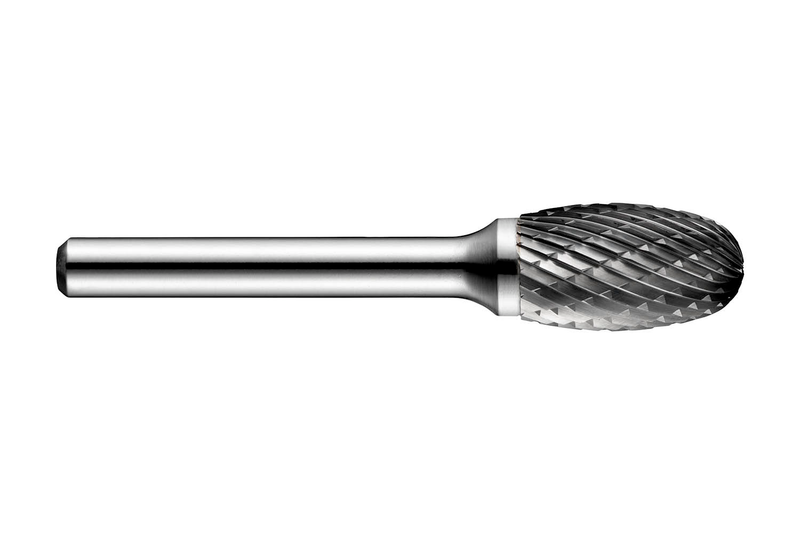

Fraise-lime ovale (forme E), diamètre 3/8" avec longueur de coupe de 5/8", longueur totale de 6.5/8" et queue de 1/4", à pointe carbure avec queue en acier trempé et durci et finition brillante, double denture DC avec arêtes rapprochées pour le profilage de bords arrondis dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux durcis

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SE-30DC-X
GradeLumineux
Product Number7466295
Product FamilySE-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)6.625"
Overall Length — mm (OAL)168.28 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466295
EAN7320760787656
File Type Download

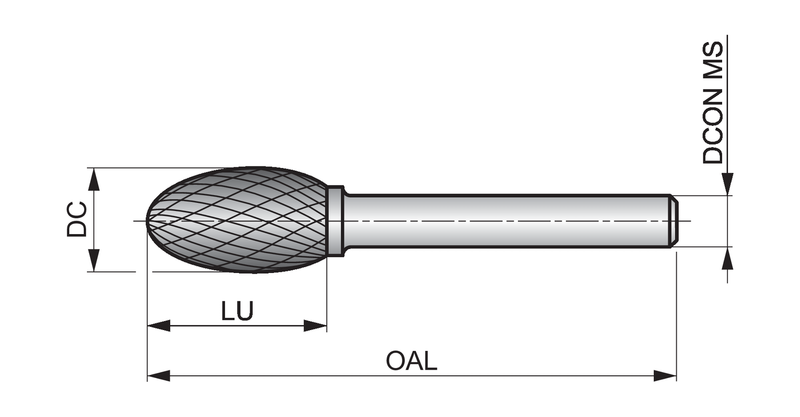

SE-30DC-X — Line Drawing PDF Download
