SE-50DC
SE-50DC

SE-50DC

UGC PRE7466296
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.00 CAD - $36.00 CAD
$36.00 CAD
$36.00 CAD - $36.00 CAD
$36.00 CAD

Vendu en lots de : 1

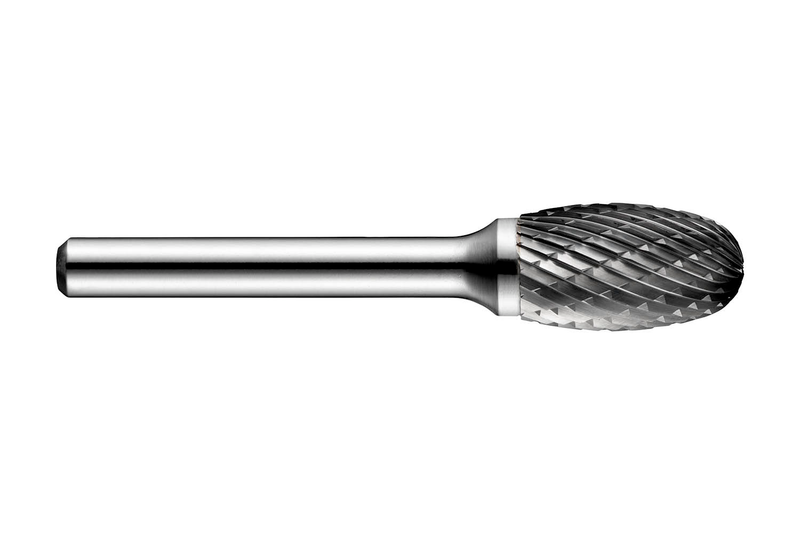

Fraise ovale (forme E), diamètre 1/2" avec longueur de coupe de 7/8", longueur totale de 2.5/8" et queue de 1/4", à pointe en carbure avec queue en acier trempé et revenu et finition brillante, double denture DC avec bords rapprochés pour le contournage de bords arrondis dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SE-50DC
GradeLumineux
Product Number7466296
Product FamilySE-DC
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Usable Length — mm (LU)22.23 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466296
EAN7320760787663
File Type Download

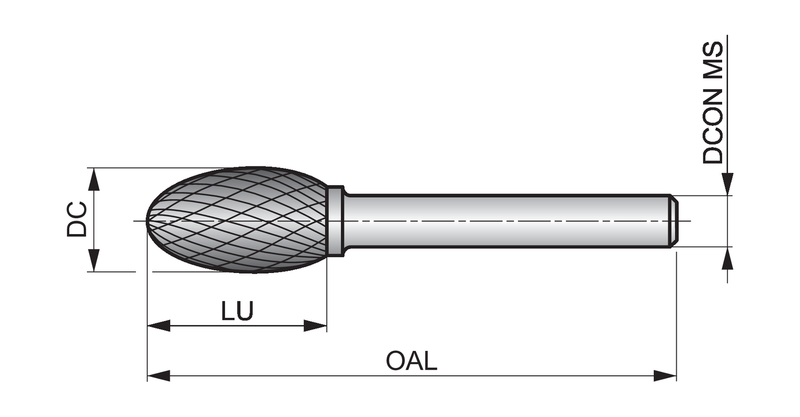

SE-50DC — Line Drawing PDF Download
