SE-30FM
SE-30FM

SE-30FM

UGC PRE7466299
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.64 CAD - $32.64 CAD
$32.64 CAD
$32.64 CAD - $32.64 CAD
$32.64 CAD

Vendu en lots de : 1

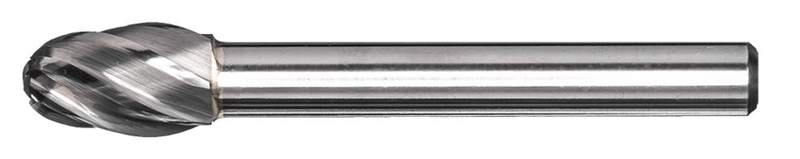

Fraise ovale (forme E), diamètre 3/8" avec longueur de coupe de 5/8", longueur totale de 2.3/8" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, à une seule coupe FM avec bords larges pour le contournage de bords arrondis dans les polymères renforcés de fer forgé, d'aluminium moulé et de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SE-30FM
GradeLumineux
Product Number7466299
Product FamilySE-FM

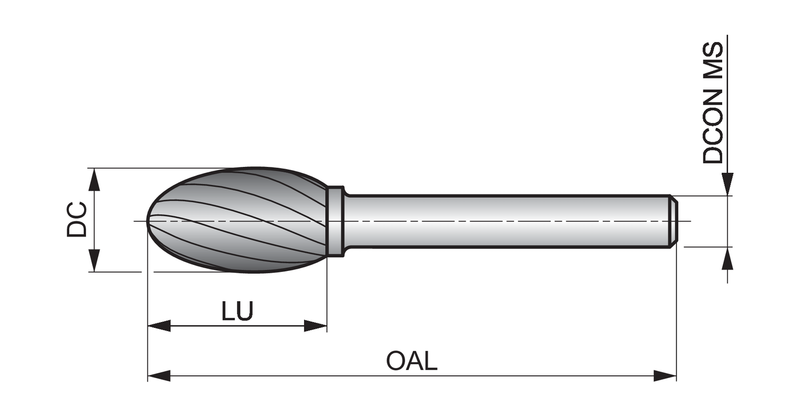

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466299
EAN7320760787694
File Type Download
SE-30FM — Line Drawing PDF Download
