SE-50FM
SE-50FM

SE-50FM

UGC PRE7466301
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.36 CAD - $46.36 CAD
$46.36 CAD
$46.36 CAD - $46.36 CAD
$46.36 CAD

Vendu en lots de : 1

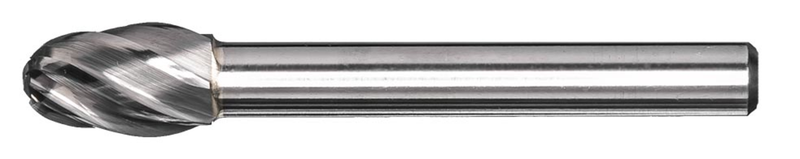

Fraise ovale (forme E), diamètre 1/2" avec 7/8" de longueur de coupe, 2.5/8" de longueur totale et 1/4" de queue, à pointe en carbure avec queue en acier trempé et durci et finition brillante, style de cannelure simple taille FM avec bords larges pour le contournage de bords arrondis dans l'aluminium forgé, moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SE-50FM
GradeLumineux
Product Number7466301
Product FamilySE-FM
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Usable Length — mm (LU)22.23 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466301
EAN7320760787717
File Type Download

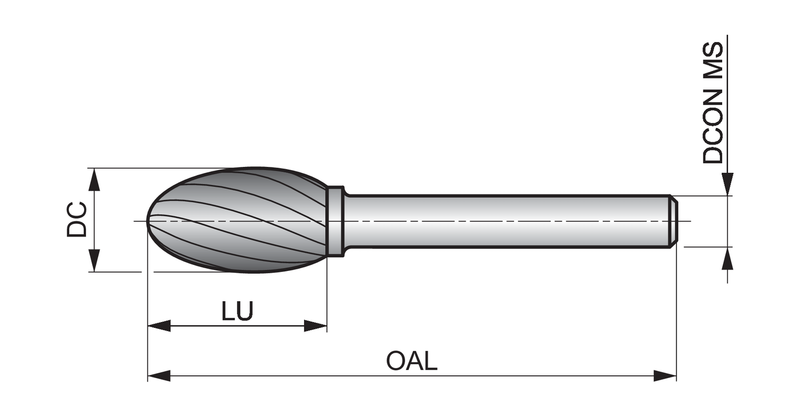

SE-50FM — Line Drawing PDF Download
