SF-10DC-X
SF-10DC-X

SF-10DC-X

UGC PRE7466306
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.20 CAD - $31.20 CAD
$31.20 CAD
$31.20 CAD - $31.20 CAD
$31.20 CAD

Vendu en lots de : 1

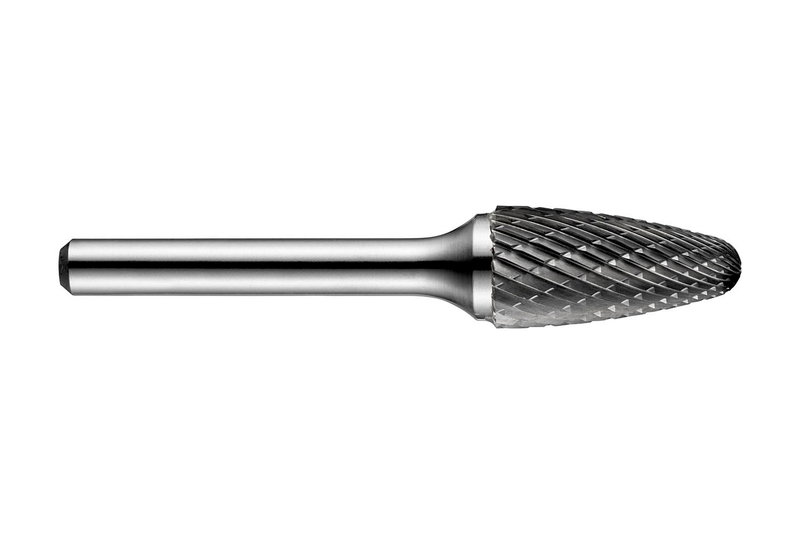

Fraise-lime rotative sphérique (forme F), diamètre de 1/4" avec longueur de coupe de 5/8", longueur totale de 6.3/4" et queue de 1/4", carbure monobloc avec finition brillante, double denture croisée DC avec bords rapprochés pour le détourage multi-angle, l'arrondissement des bords et le fraisage des zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SF-10DC-X
GradeLumineux
Product Number7466306
Product FamilySF-DC

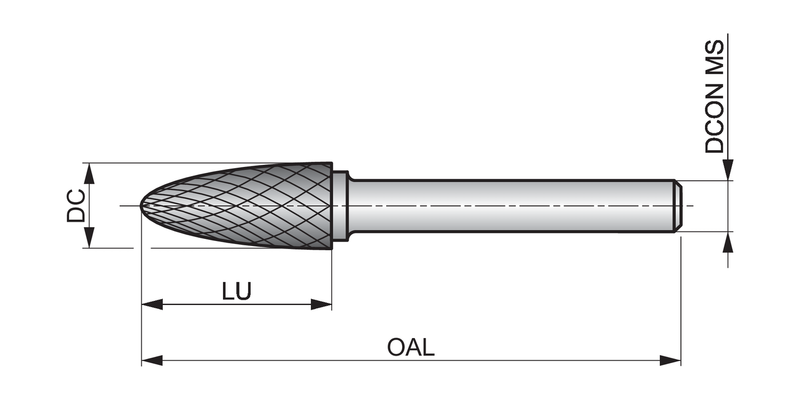

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)6.75"
Overall Length — mm (OAL)171.45 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466306
EAN7320760787762
File Type Download
SF-10DC-X — Line Drawing PDF Download
