SF-50FM
SF-50FM

SF-50FM

UGC PRE7466317
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.06 CAD - $43.06 CAD
$43.06 CAD
$43.06 CAD - $43.06 CAD
$43.06 CAD

Vendu en lots de : 1

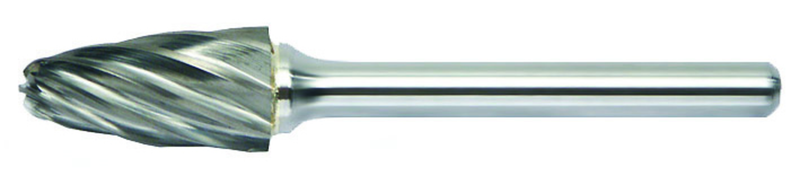

Fraise ronde (forme F), diamètre 1/2" avec longueur de coupe de 1", longueur totale de 2.3/4" et queue de 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure simple taille FM avec bords espacés pour le contournage multi-angle, l'arrondissement des bords et la coupe dans les zones difficiles d'accès dans l'aluminium forgé, l'aluminium moulé et les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SF-50FM
GradeLumineux
Product Number7466317
Product FamilySF-FM

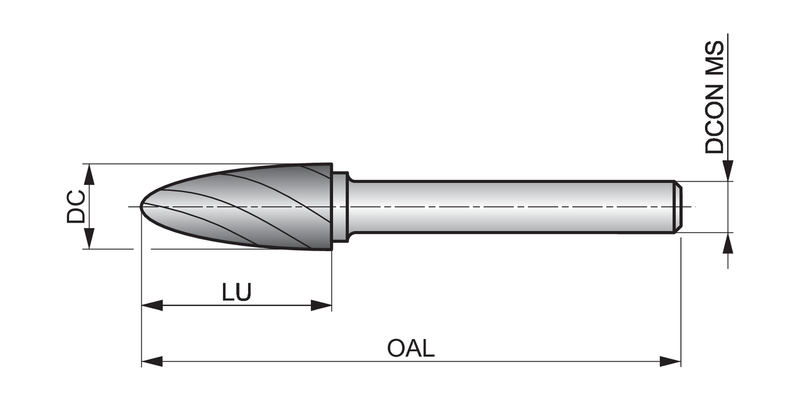

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466317
EAN7320760787878
File Type Download
SF-50FM — Line Drawing PDF Download
